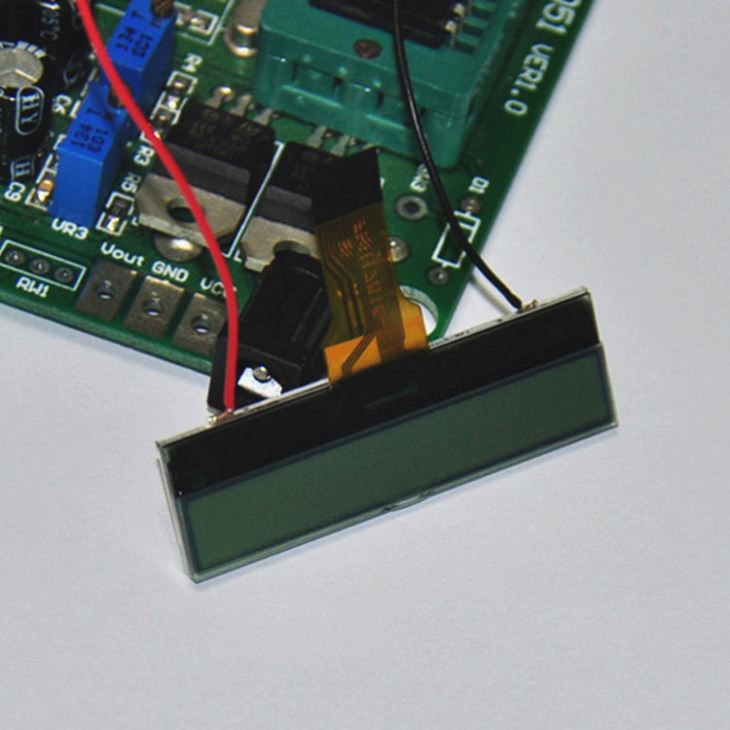

128x16 Graphic LCD Screen

ENH-DG128016-01 is a small and special monochrome graphic lcd with 128x16 pixels,backlight wire connect,FPC 14 pin connect for glass,FSTN material wide viewing angle,6 O’clock viewing angle,Chip on the glass(COG),ST7567 controller IC,2 pcs white led backlight.It can be easy to be designed for new prototype.

Product Details

Description:


ENH-DG128016-01 is a small and special monochrome graphic lcd with 128x16 pixels,backlight wire connect,FPC 14 pin connect for glass,FSTN material wide viewing angle,6 O’clock viewing angle,Chip on the glass(COG),ST7567 controller IC,2 pcs white led backlight.It can be easy to be designed for new prototype.


Parameters:




Detail images:


graphic lcd module.jpg

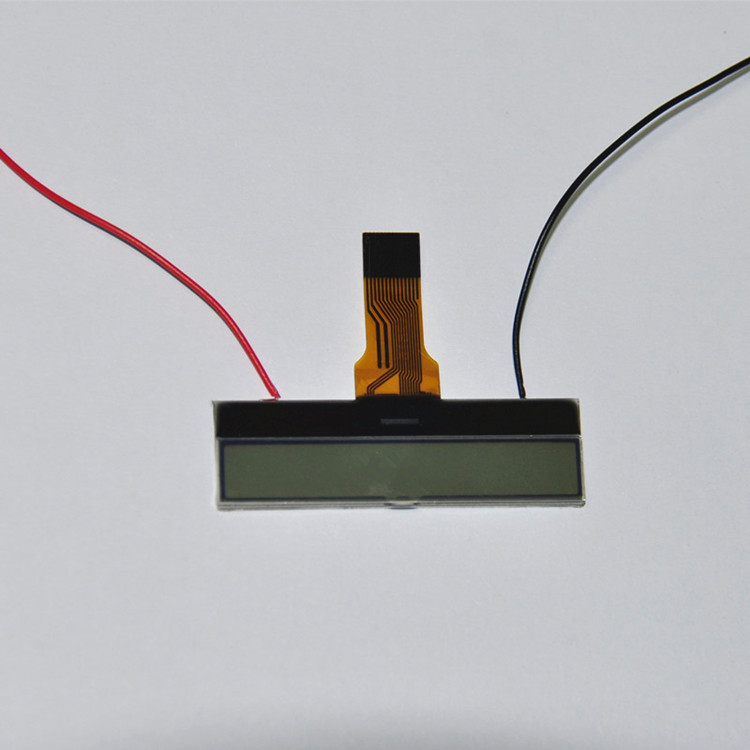

lcd monitor.jpg

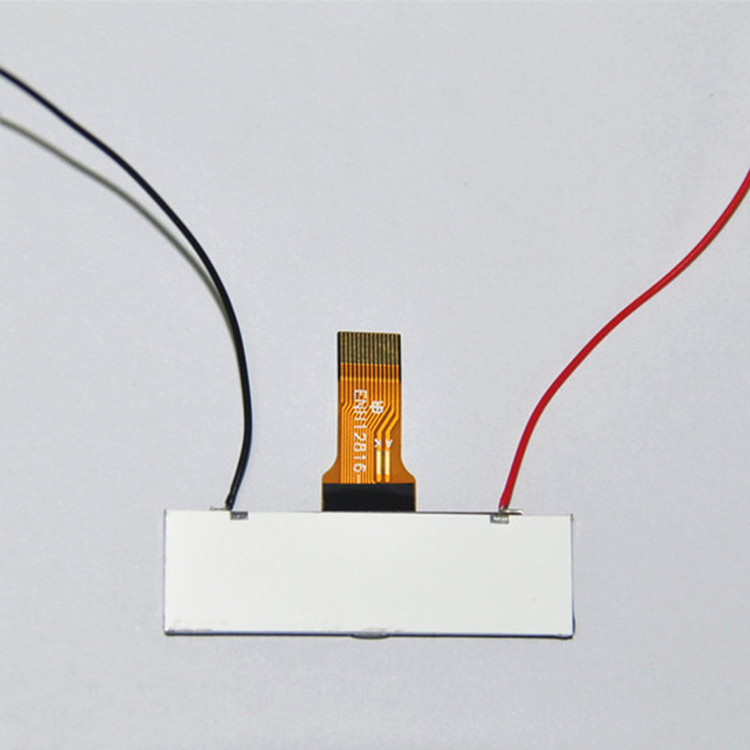

lcd module .jpg

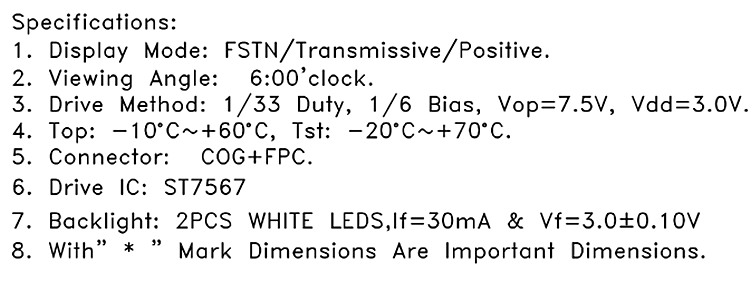

Specifications:


lcd drawing.png



Contact us:
