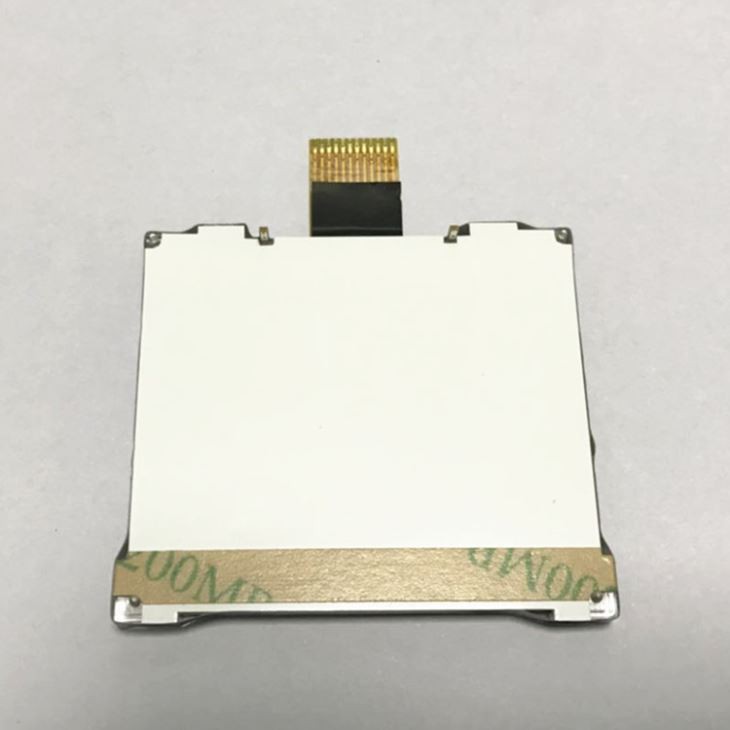

White LED Backlight 128x64 LCD

ENH-DG128064-88 is a mono 128x64 graphic LCD display,diagonal size 1.95 inch.The model is built in with ST7567 controller or equivalent IC;it supports 6800 8-bit parallel interface.This 128x64 LCD module is 3.0V power supply.This 12864 Graphic LCD module is available for without backlight or with LED backlight options.This model graphic LCD display can be operating at temperatures from -10℃ to +60℃;its storage temperatures range from -20℃ to +70℃.

Product Details

Description:



ENH-DG128064-88 is a mono 128x64 graphic LCD display,diagonal size 1.95 inch.The model is built in with ST7567 controller or equivalent IC;it supports 6800 8-bit parallel interface.This 128x64 LCD module is 3.0V power supply.This 12864 Graphic LCD module is available for without backlight or with LED backlight options.This model graphic LCD display can be operating at temperatures from -10℃ to +60℃;its storage temperatures range from -20℃ to +70℃.



Parameters:




Specifications:

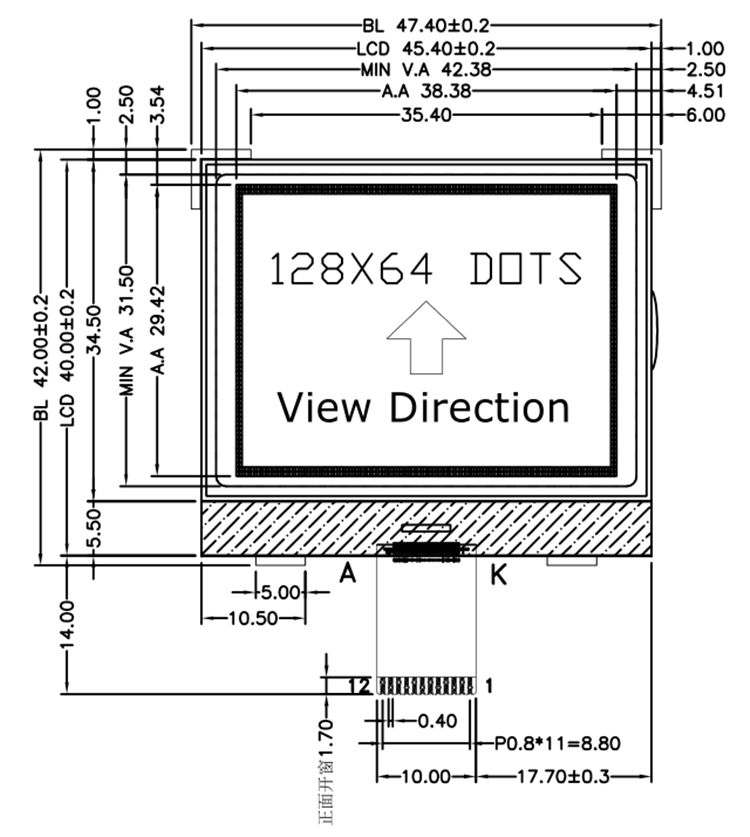

lcd drawing.png


Interface:
