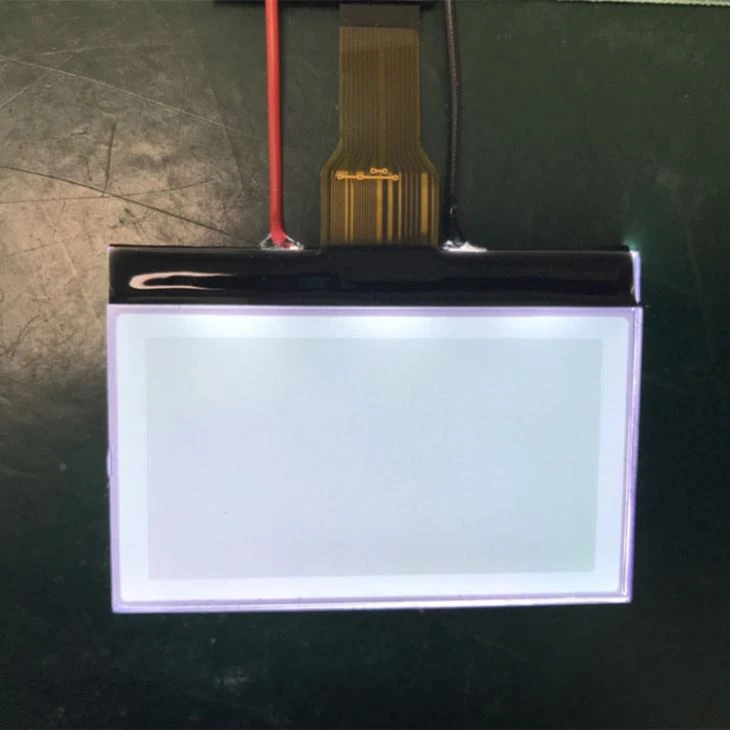

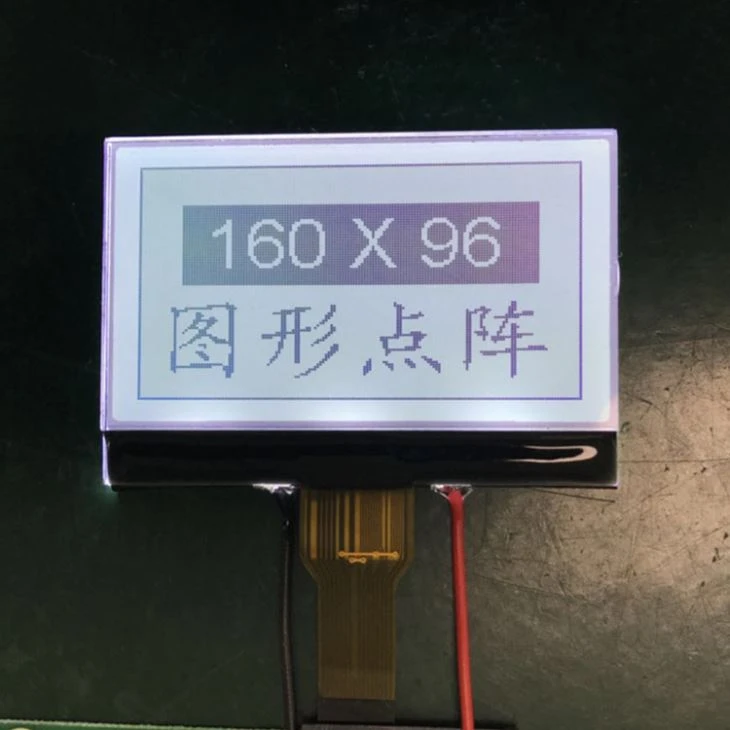

160x96 Graphic Display

ENH-DG160096-02 is a monochrome LCD 160x96 dot matrix display module which is having the module dimension of 56.60x38.60 mm and AA size of 48.78x25.90 mm;diagonal size 2.17 inch LCD display.The LCD model is built in with ST75160 controller;it communicates via 8080 8-bit parallel interface,3.3 V power supply.This LCD can be operating at temperatures from -10℃ to +60℃;its storage temperatures range from -20℃ to +70℃.Shenzhen Enrich Electronics is the professional LCD manufacturer in Shenzhen,China.

Product Details

Description:



ENH-DG160096-02 is a monochrome LCD 160x96 dot matrix display module which is having the module dimension of 56.60x38.60 mm and AA size of 48.78x25.90 mm;diagonal size 2.17 inch LCD display.The LCD model is built in with ST75160 controller;it communicates via 8080 8-bit parallel interface,3.3 V power supply.This LCD can be operating at temperatures from -10℃ to +60℃;its storage temperatures range from -20℃ to +70℃.Shenzhen Enrich Electronics is the professional LCD manufacturer in Shenzhen,China.



Parameters:


Display Drawing:



lcd drawing.png






Interface:




Detail images:

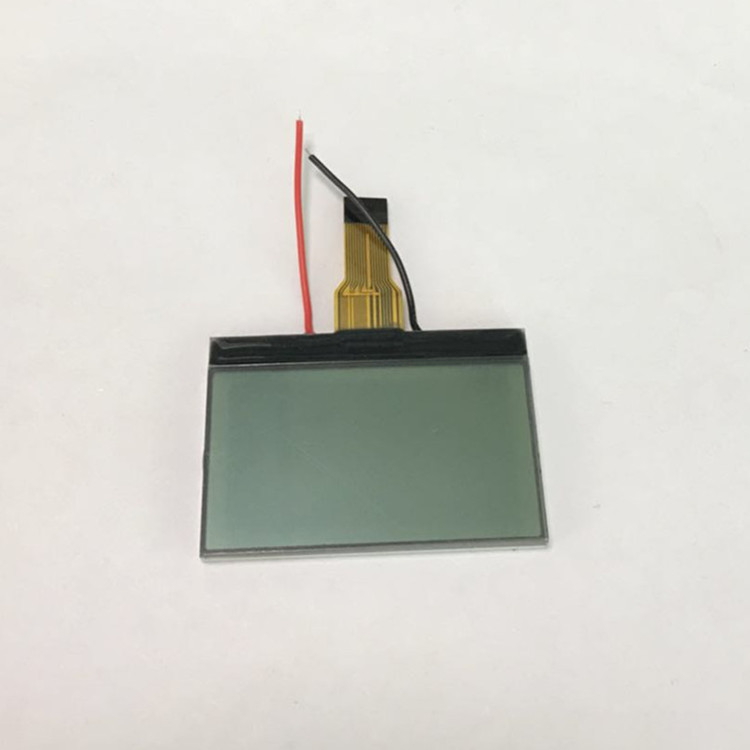

lcd display.jpg

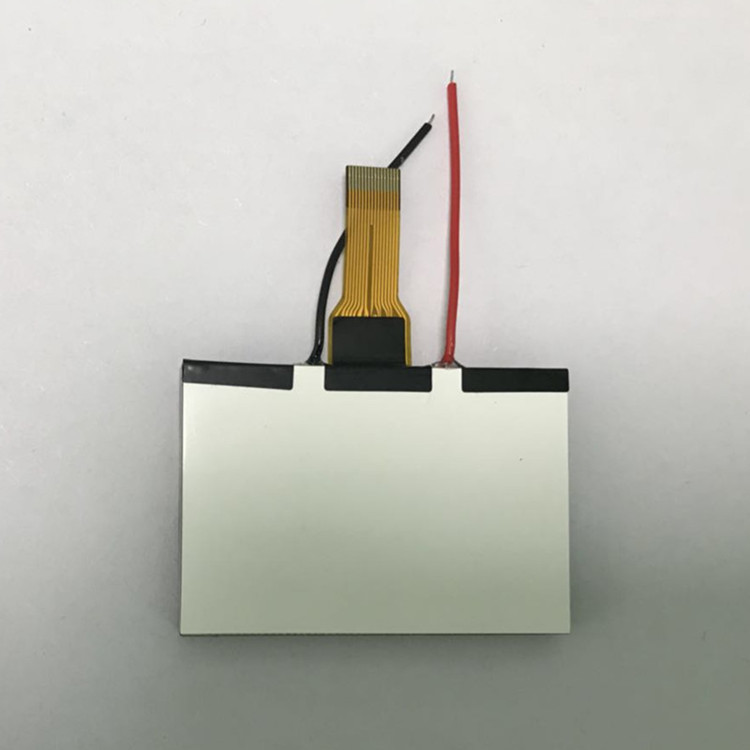

lcd screen.jpg





FAQ:



  1. Q: May I have a sample for test?

    A: Yes, we welcome the sample order.



  2. Q:Where can I get the datasheet?

    A: Next to the title, it is the datasheet, you could download.







  3. Q:Are you the LCD manufacturer or Trading company?

      A: We are the LCD manufacturer with more than 3,000 square meters lcd factory.
