Description ENH4004A-Y is 40x4 Character LCD display module which is built in with SPLC780D controller IC, STN positive, transflective, -20°C to +70°C, 6:00 viewing angle; its default interface is 8-bit parallel and 5V power supply option. This 40x4 LCD display ENH4004A-Y is available for yellow...

Product Details

Description

ENH4004A-Y is 40x4 Character LCD display module which is built in with SPLC780D controller IC, STN positive, transflective, -20°C to +70°C, 6:00 viewing angle; its default interface is 8-bit parallel and 5V power supply option. This 40x4 LCD display ENH4004A-Y is available for yellow and green LED backlight.


Key Features

Medical Spec

+Outline Dimension: 190(L) * 54(W) * Max 13.3(T)mm

+Viewing Area: 149(L) * 30( W)mm

+Dot size: 0.5(W)*0.55(H)mm

+Dot pitch: 0.57(W)*0.62 (H)mm


LCD Drawing

 LCD Display Modules.jpg


PIN Definition


Image Details

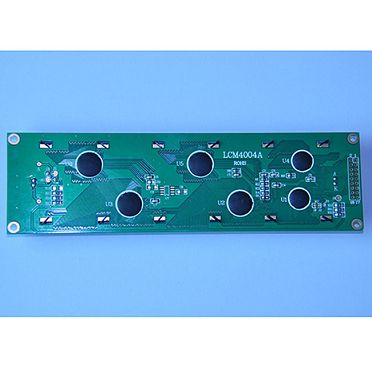

LCD  LCD Display Modules factory.jpg  LCD displays .jpg


Application

Industrial/Medical Products: Energy Meter Motor Sound Box, Gas Meter, Sport Equipment, Industrial Equipment, Medical Equipment...

Office Equipment Products: Electrograph, Printer, Card Puncher, Copy Machine, Fax Machine...

Bank & Supermarket System Products: POS Machine, Bank Payer, Automatic Counter Machine, Taxi Counter...
