Character LCD Displays for Elevators

Description This 128*64 graphic COB LCD module has an integrated 0107 and 0108 or compatible display controller. Since this graphic LCD is a transflective, positive-mode display, the backlight may be turned off when there is sufficient ambient light to read the display. This display is well...

Product Details

Description

This 128*64 graphic COB LCD module has an integrated 0107 and 0108 or compatible display controller. Since this graphic LCD is a transflective, positive-mode display, the backlight may be turned off when there is sufficient ambient light to read the display. This display is well suited for Elevators, or any application where a lot of display in a very small area is needed.


Medical Specification

-Outline Dimension: 54(L) * 50(W) * Max 7.7(T)mm

-Viewing Area: 43.5(L) * 28.8( W)mm

-Dot size: 0.28(W)*0.35(H)mm

-Dot pitch: 0.32(W)* 0.39(H)mm


Features

-Display Type: 128*64 dots

-LCD Type: STN, Positive (Y-G),Transflective

-Driver Condition: LCD Module: 1/128Duty, 1/9Bias

-Viewing Direction: 6 O’clock

-Backlight Type: SIDE Y-G

-Interface: 8-bit MPU interface

-Drive IC: 0107,0108


LCD Drawing


PIN Definition


Image Details

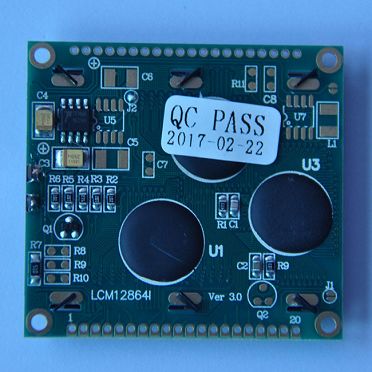

 LCD Displays for Elevators.jpg   LCD Displays for Elevators factory.jpg


Application

Consumer Electronic Products: Calculator, electronic bell, CD, VCD, MP3 player...

Communication Products: Cellular Phone, IC phone, Information Phone, Mobile Phone, Wireless Phone, PDA...

......
