1.8 Inch Yellow-Green 128x64 Graphic LCD

ENH-DG128064-113 is 1.8 inch white background with 128x64 monochrome black pixels cog(chip on glass) lcd module, ST7567 controller,12 O’clock viewing angle,10 pin Soldering type FPC,working voltage is 3.3V,with Yellow-Green led backlight;which the dimension size is 47.20x37.20mm and AA area is 39.02x22.70mm.We can customize according to your requirement completerly and provide lcd design.

Product Details

Description:



ENH-DG128064-113 is 1.8 inch white background with 128x64 monochrome black pixels cog(chip on glass) lcd module, ST7567 controller,12 O’clock viewing angle,10 pin Soldering type FPC,working voltage is 3.3V,with Yellow-Green led backlight;which the dimension size is 47.20x37.20mm and AA area is 39.02x22.70mm.We can customize according to your requirement completerly and provide lcd design.

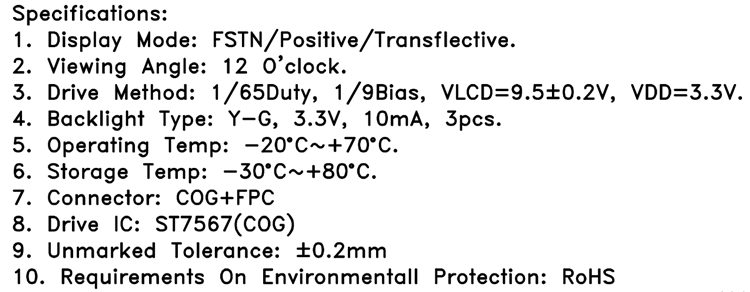

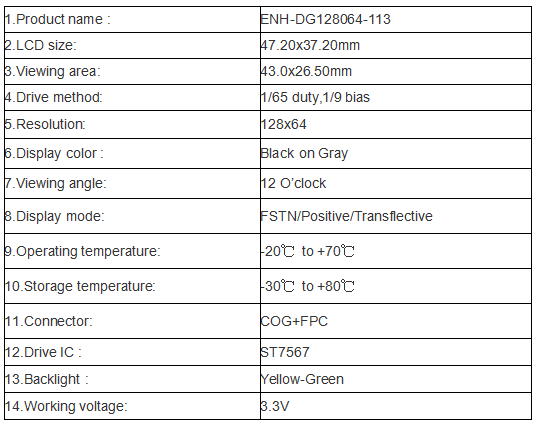

Parameters:






Display Drawing:









Interface:




Detail image:

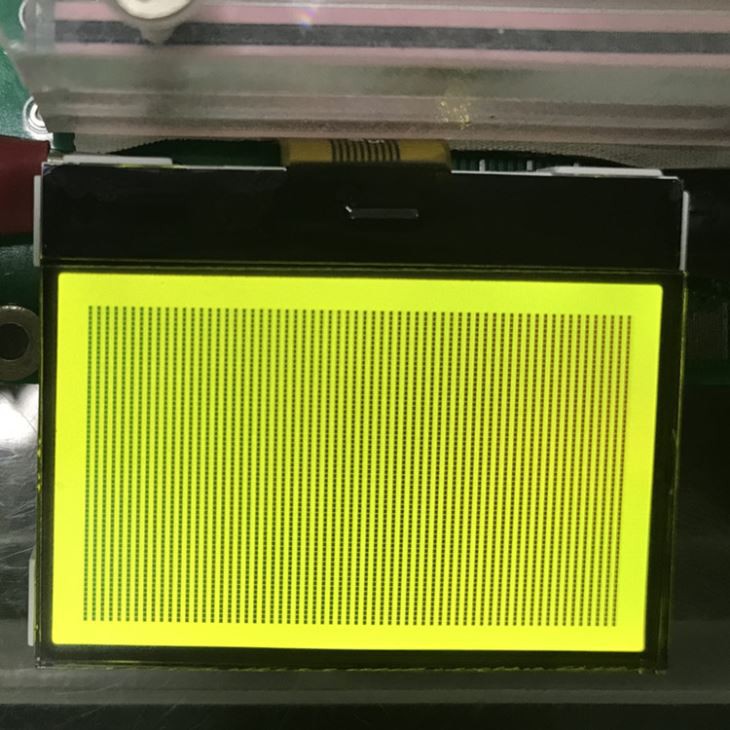

128x64 graphic lcd.jpg

led backlight.jpg
