128x128 Graphic LCD Display

Description: Here is the ENH-DG1280128-04 graphic LCD,128x128 resolution,very common LCD for measuring equipment,2.5 inch module,Serial I2C,black on white,ST7541.Shenzhen Enrich Electronics Co.,Ltd is your best choice of LCD supplier. Specification: Detail images: Display drawing: Customer’s...

Product Details

Description:

Here is the ENH-DG1280128-04 graphic LCD,128x128 resolution,very common LCD for measuring equipment,2.5 inch module,Serial I2C,black on white,ST7541.Shenzhen Enrich Electronics Co.,Ltd is your best choice of LCD supplier.

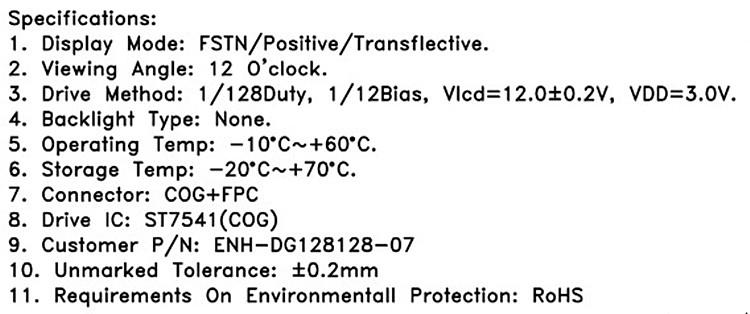

Specification:


1.Product name :

ENH-DG1280128-04

2.Size:

55.0x54.0mm

3.Viewing area :

48.78x48.78mm

4.Active area :

44.78x44.78mm

5.Resolution:

128X128

6.Display type :

FSTN/Transflective/Positive

7.Viewing angle:

12 O'clock

8.Drive method :

1/128 duty, 1/12 bias

9.Working temp :

-10℃~+60℃

10.Storage temp :

-20℃~+70℃

11.Connector:

COG+FPC

12.Drive IC :

ST7541

13.Backlight :

N/C

14.Interface:

Serial I2C

15.Voltage:

Vop=12.0V, Vdd=3.0V



Detail images:


128x128 Graphic LCD Display.jpg  128x128 Graphic LCD Display factory.jpg  128x128 Graphic LCD Display suppliers.jpg


Display drawing:


Customer’s Application:





                  LCD for measuring equipment


FAQ:

1.Q:This LCD module is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

A: For the segment type LCD module, if you need modify the outline size or display content, a newly LCD tooling is needed. We will design the LCD drawing for confirmation,after it is OK,paying the tooling cost,and we will begin the tooling and sample production.

Q:Do you have any other sizes 128x128 LCD?

A:Yes,we have. Please check our product list or contact our sales Cassie on below picture,she will send you.
