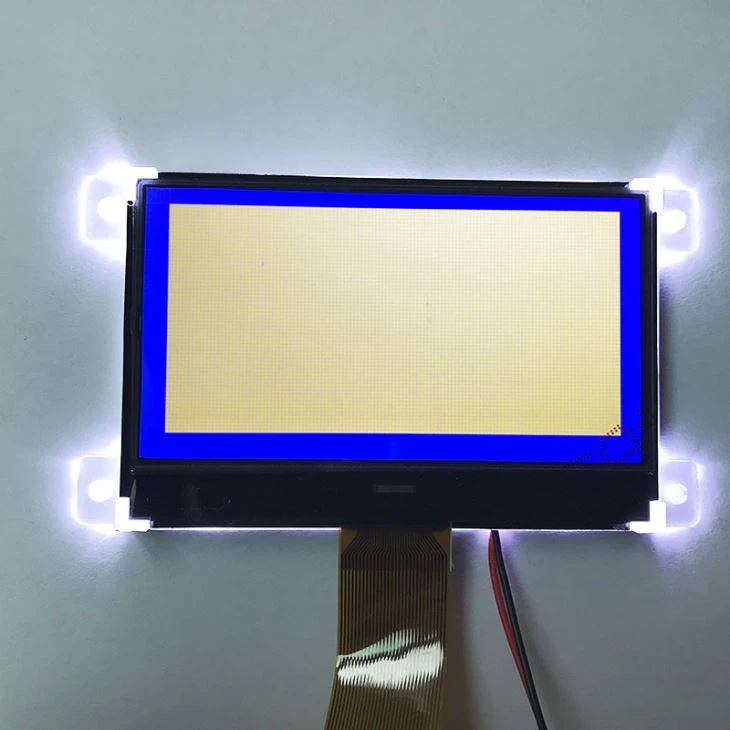

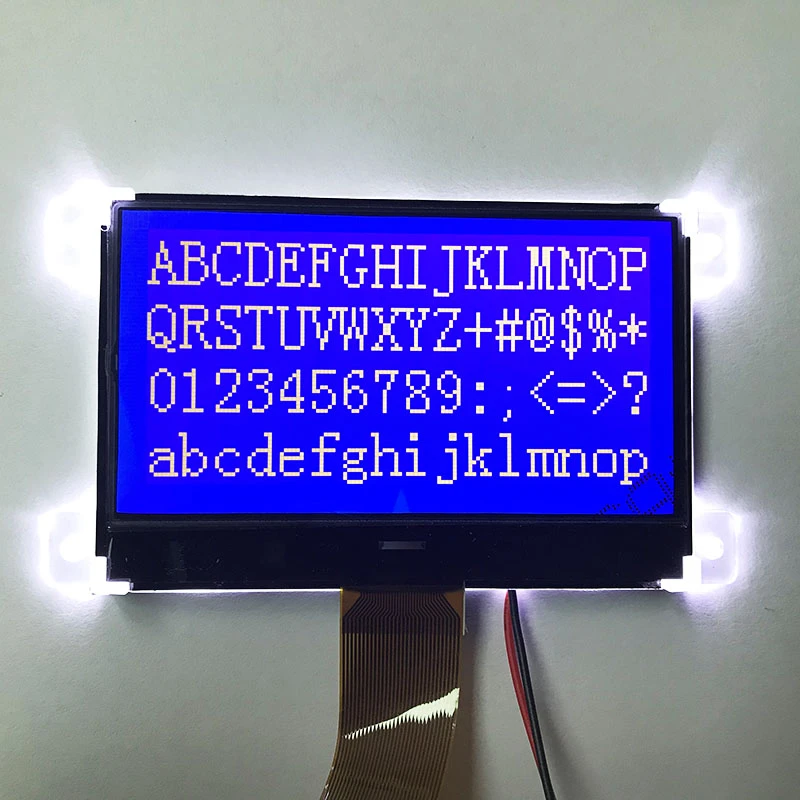

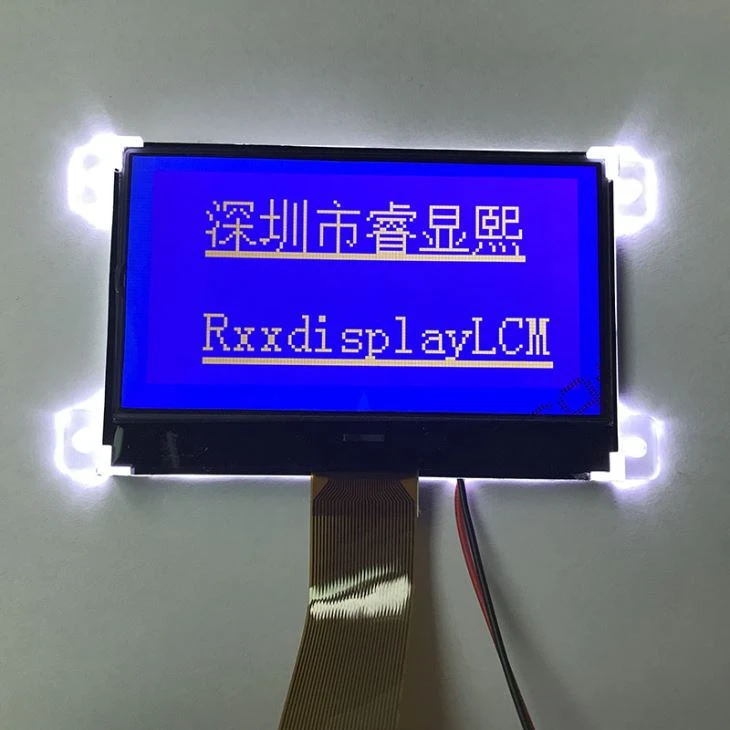

128x64 Dots LCD Display

The ENH-DG128064-23 is our smallest standard monochrome graphic LCD module. This LCD is ideal for remote controls and hand held products, as well as for applications that require a small, high-resolution display. The control IC is ST7565R. This LCD has a FPC interface. The ST7565Ris a single-chip dot matrix LCD driver that can be connected directly to a microprocessor bus.

Product Details

Description





The ENH-DG128064-23 is our smallest standard monochrome graphic LCD module. This LCD is ideal for remote controls and hand held products, as well as for applications that require a small, high-resolution display.  The control IC is ST7565R.  This LCD has a FPC interface. The ST7565Ris a single-chip dot matrix LCD driver that can be connected directly to a microprocessor bus.



Details

LCD details.jpg

LCD Drawing

 LCD drawing.jpg

LCD Pin Definition

LCD pin.jpg

Application

 LCD display 5.jpgLCD display 6.jpg
