96x64 Small Size Graphic LCD

ENH-DG096064-02 is 0.8 inch gray background with 96x64 monochrome black pixels cog(chip on glass) lcd module, RGB backlight,ST7567A controller IC,Transflective,6 O’clock viewing angle,COG+FPC connector,very small size lcd module,serial interface.Shenzhen Enrich Electronics Co.,Ltd is the LCD manufacturer and special in LCD area more than eight years, we have professional enginer team to help you design the LCD according to your application.

Product Details

Description:


ENH-DG096064-02 is 0.8 inch gray background with 96x64 monochrome black pixels cog(chip on glass) lcd module, RGB backlight,ST7567A controller IC,Transflective,6 O’clock viewing angle,COG+FPC connector,very small size lcd module,serial interface.Shenzhen Enrich Electronics Co.,Ltd is the LCD manufacturer and special in LCD area more than eight years, we have professional enginerring team to help you design the LCD according to your application.

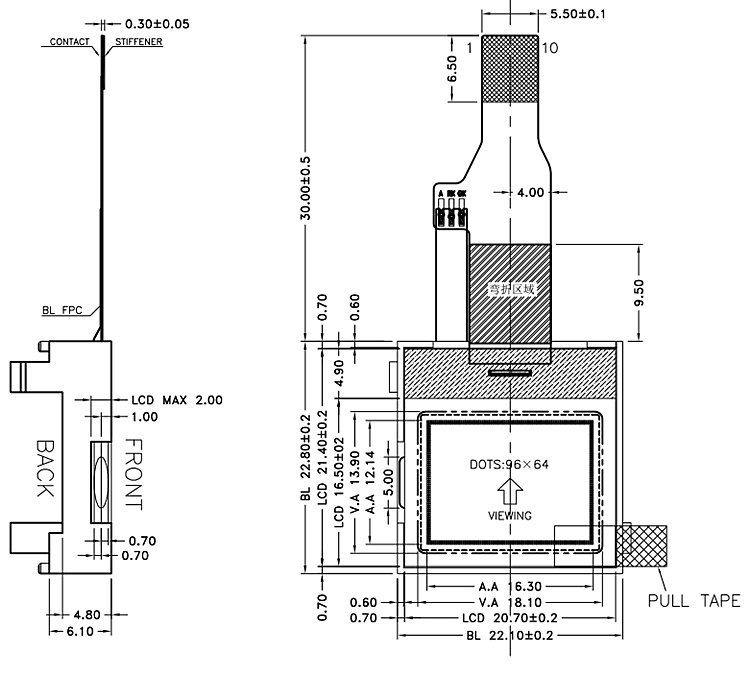

Parameters:

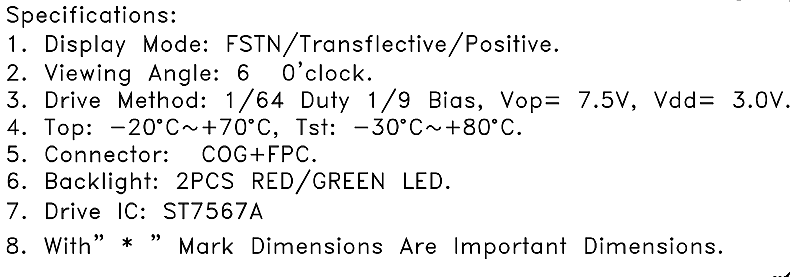

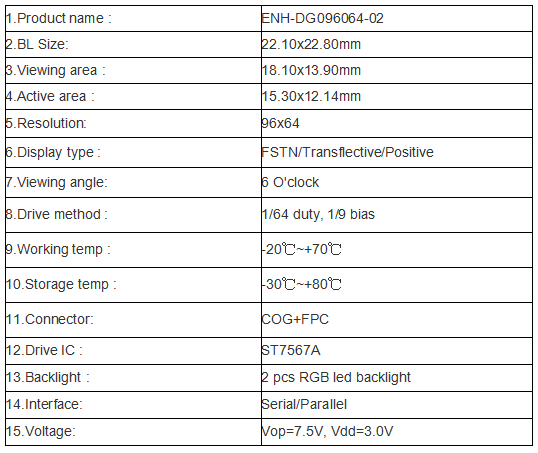

Specifications:

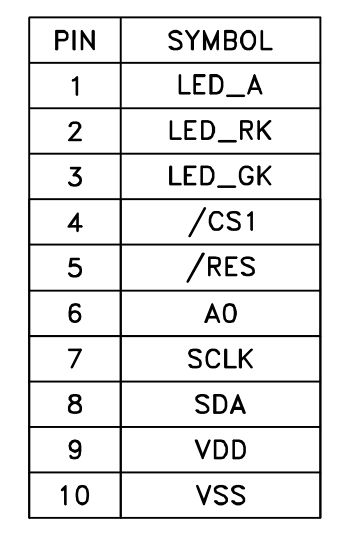

Interface:

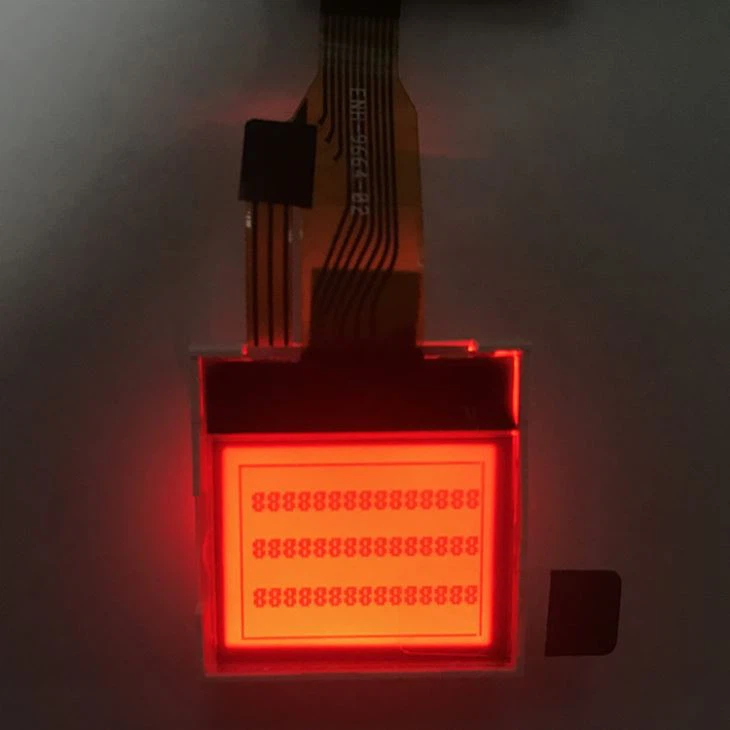

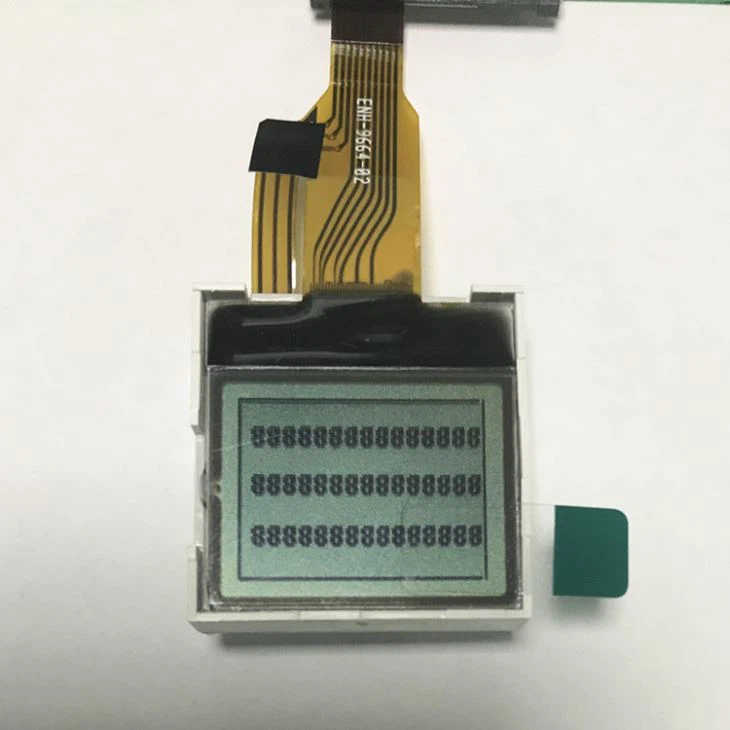

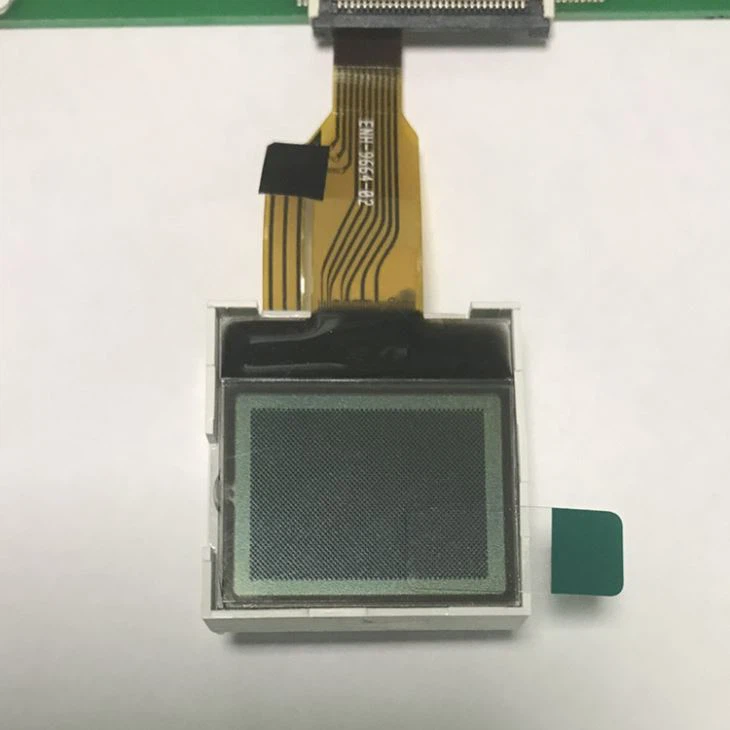

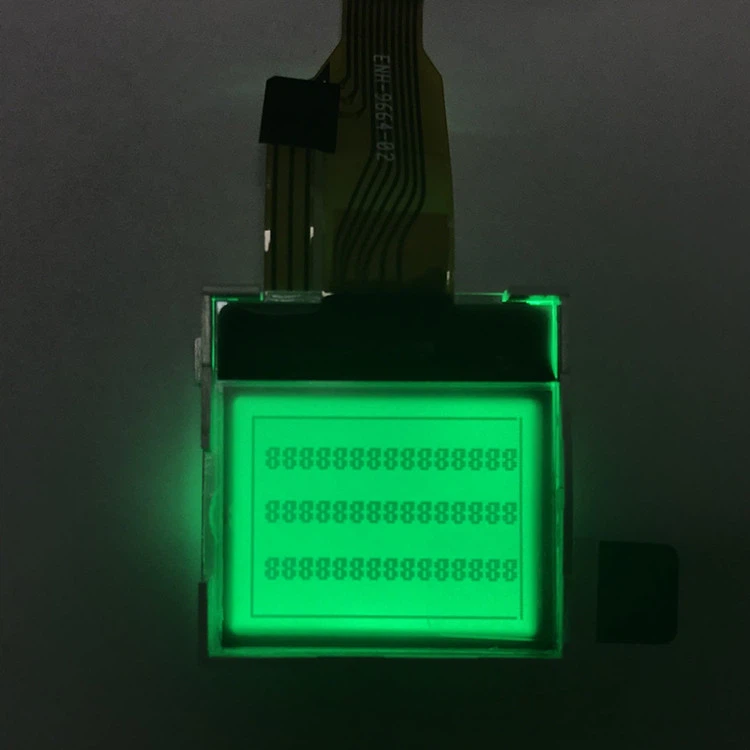

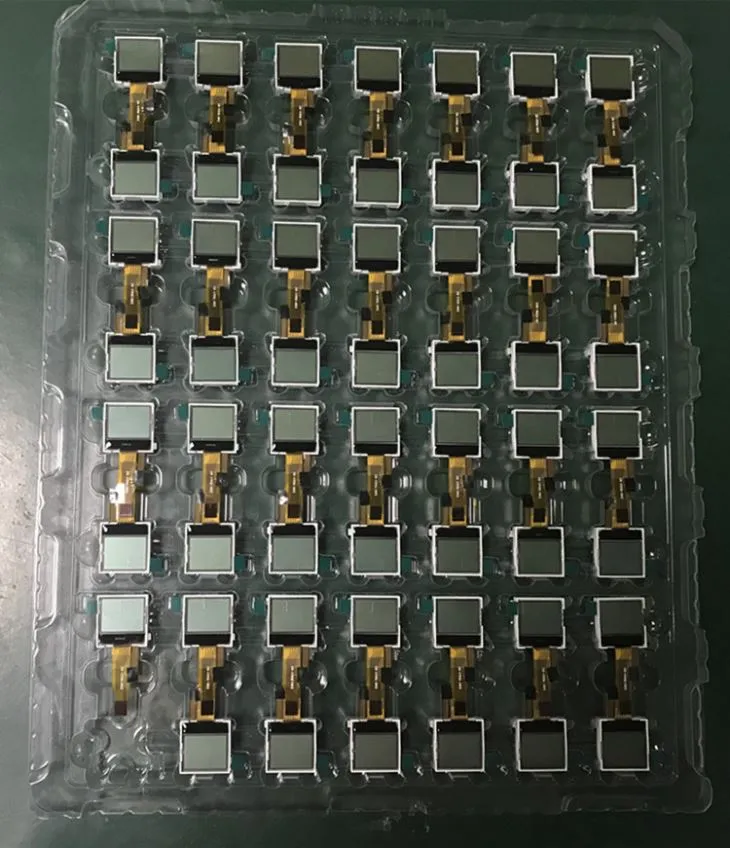

Detail images:

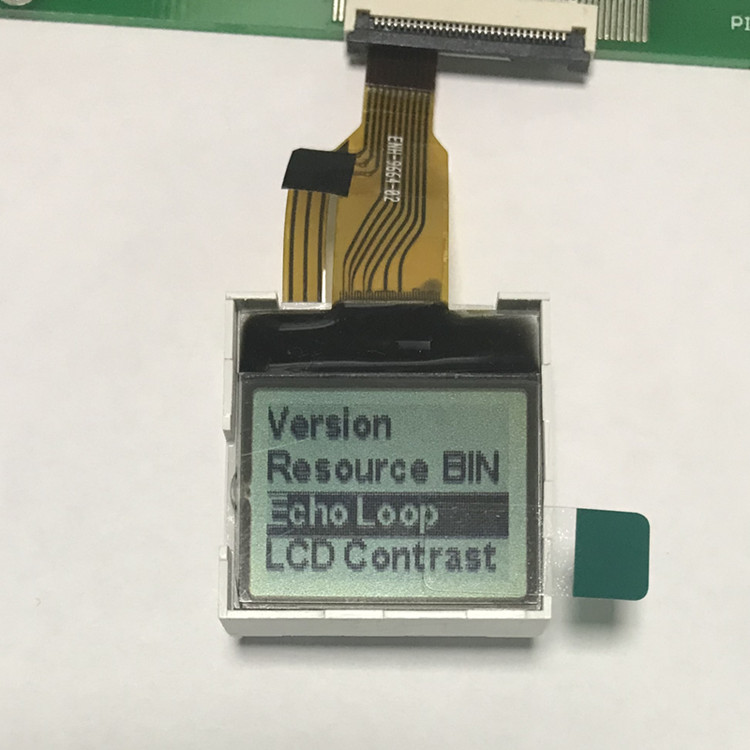

wireless lcd  display.jpg

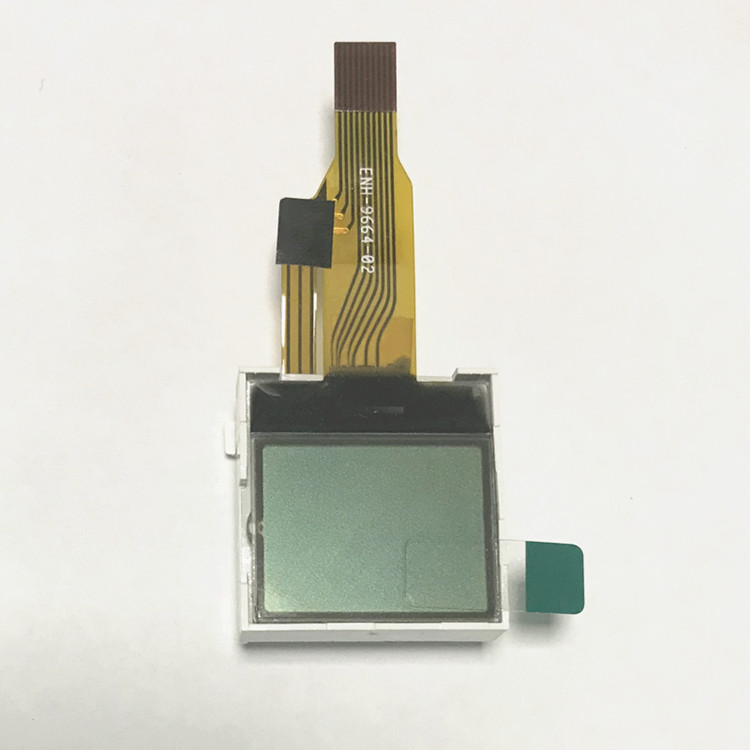

spi lcd display.jpg

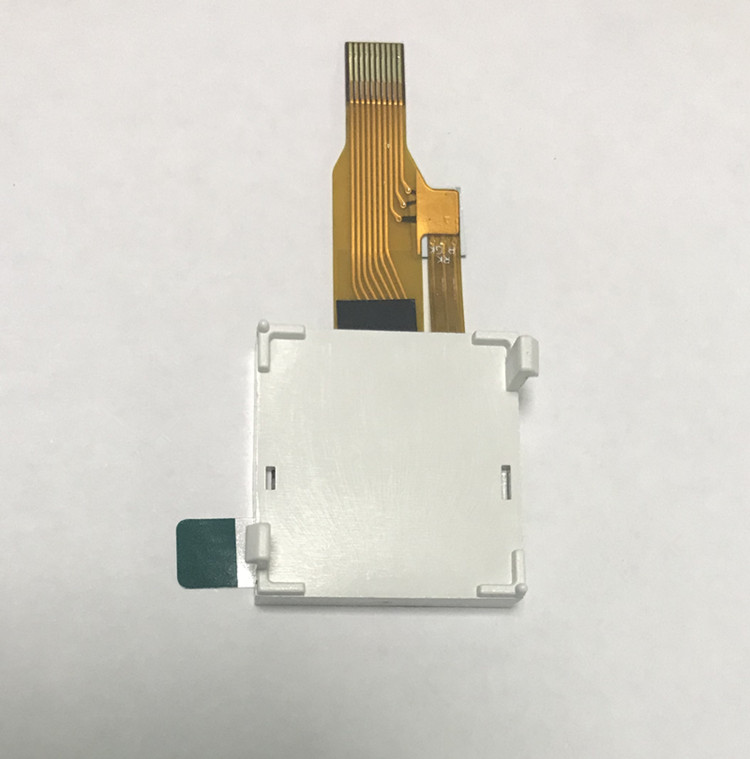

lcd suppliers.jpg


Contact us:
