LCD Displays With White Backlight

Description ENH12864J-1-B is a monochrome 128x64 graphic LCD display module with white backlight, which is having the outline dimension with 93(L) * 70(W) * Max 13.5(T) mm. This 128x64 graphic LCD display is built in with 0107 and 0108 controller IC. ENH12864J-1-B supports 8-bit MPU interface....

Product Details

Description

ENH12864J-1-B is a monochrome 128x64 graphic LCD display module with white backlight, which is having the outline dimension with 93(L) * 70(W) * Max 13.5(T) mm. This 128x64 graphic LCD display is built in with 0107 and 0108 controller IC. ENH12864J-1-B supports 8-bit MPU interface. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

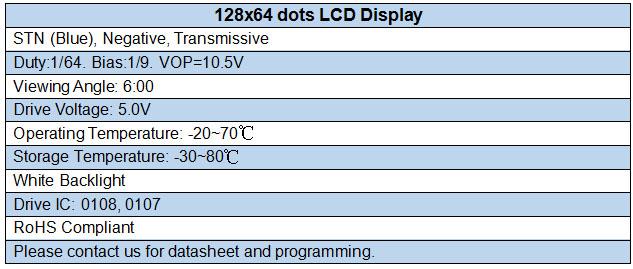

Specification


Features

-Resolution: 128*64

-Interface: 8-bit MPU interface

-Outline Dimension: 93(L) * 70(W) * Max 13.5(T)mm

-Viewing Area: 70.7(L) * 38.8( W)mm

-Dot Size: 0.48(W) × 0.48(H)mm

-Dot Pitch: 0.52(W) × 0.52(H)mm


LCD Drawing

LCD drawing .jpg


PIN Definition

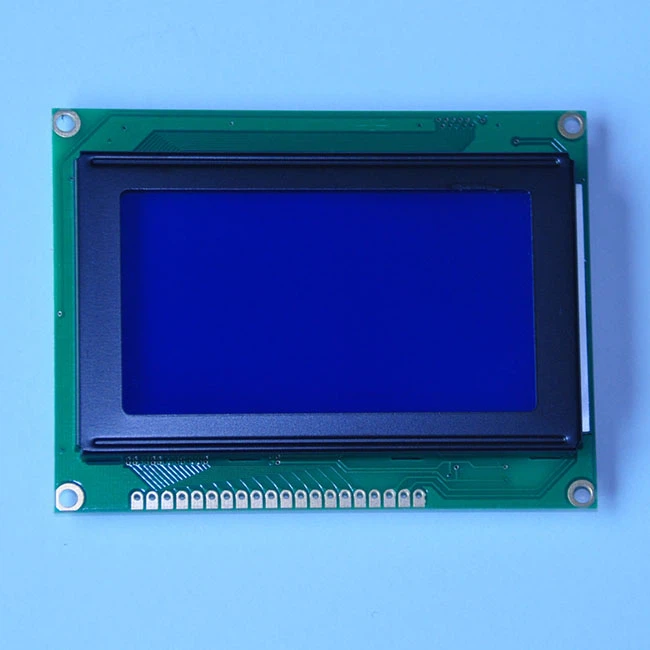

Detail Images


COB LCD module .jpg  LCD display .jpg
