Segment LCD Module White On Black

ENH-SS816020-01 is the black background with white character segment lcd module,very high contrast LCD,VA material,white led backlight,with HT1621 drive IC,FPC+COB connector,operating voltage is 3.3V;This lcd module outline size is 107.30x27.45mm and Viewing area is 101.7x19.85mm.We could customize different lcd according to clients’ requirement.

Product Details

Description:



ENH-SS816020-01 is the black background with white character segment lcd module,very high contrast LCD,VA material,white led backlight,with HT1621 drive IC,FPC+COB connector,operating voltage is 3.3V;This lcd module outline size is 107.30x27.45mm and Viewing area is 101.7x19.85mm.We could customize different lcd according to clients' requirement.



Parameters:




Specifications:

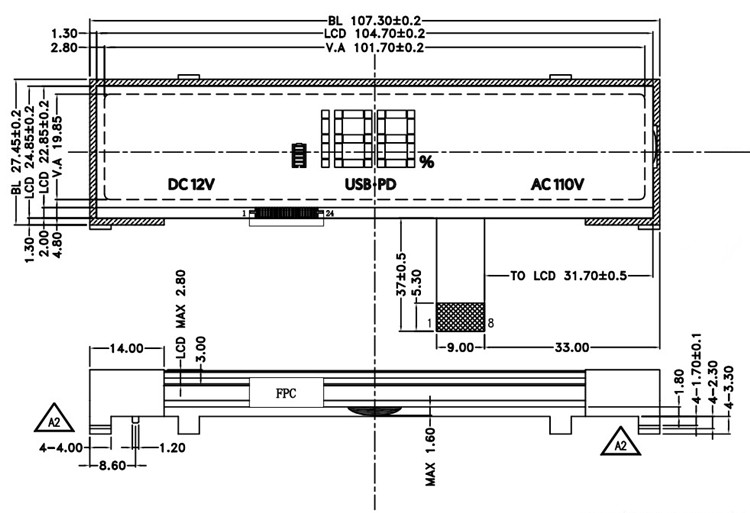

lcd drawing.JPG

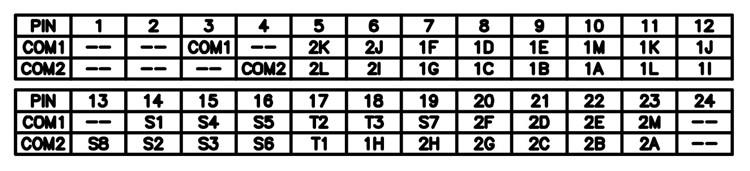

Interface:




Contact us:
