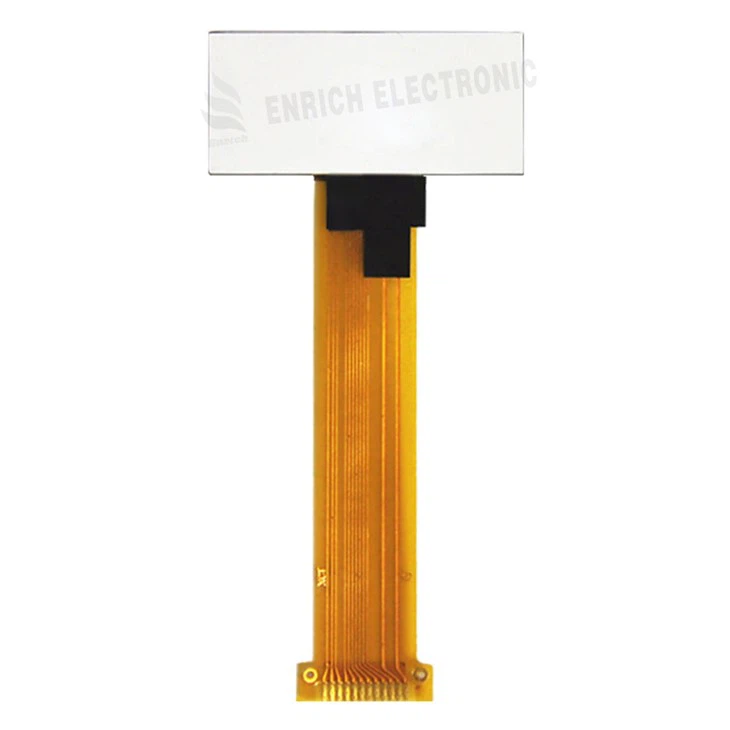

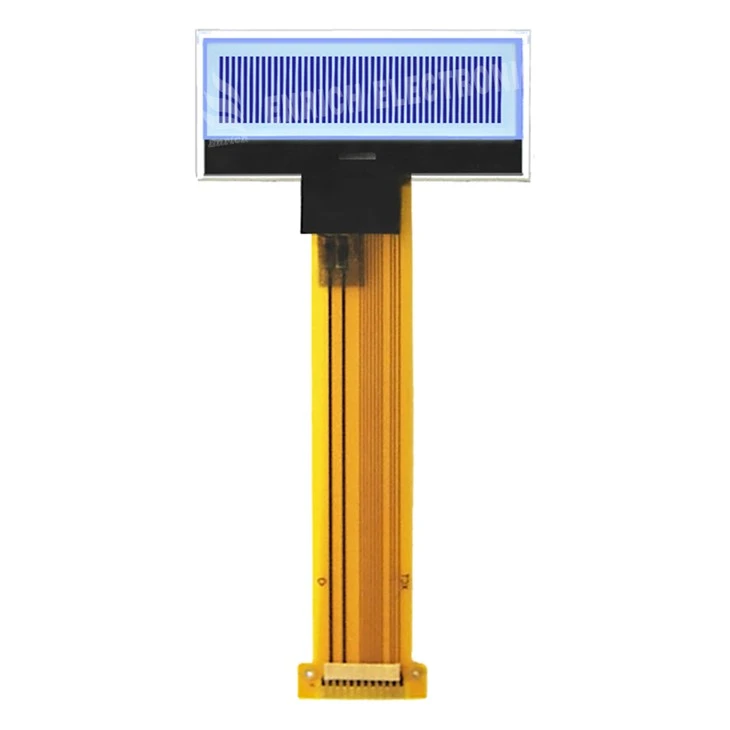

132x32 Graphic LCD Display Module

132x32 Graphic LCD Display Module, a high-performance display solution designed to meet the demands of various industrial and consumer applications. This module features a 132x32 pixel resolution, utilizing FSTN (Film Super-Twisted Nematic) technology in a transflective, positive display mode, ensuring excellent visibility in diverse lighting conditions. The display is optimized for a 12 o'clock viewing angle, making it ideal for applications where the user primarily views the screen from above.



Equipped with the ST7567 driver IC, this module offers reliable performance and efficient power consumption. The connection is facilitated through a Chip-On-Glass (COG) assembly combined with a flexible printed circuit (FPC), resulting in a compact and lightweight design that simplifies integration into various devices.



The module operates effectively within a temperature range of -10°C to +60°C, with a storage temperature range of -20°C to +70°C, ensuring durability and consistent performance in challenging environments. Its compact dimensions make it suitable for devices with limited space, while the high-contrast display ensures clear readability of graphics and text.



This 132x32 Graphic LCD Display Module is ideal for a wide range of applications, including industrial control systems, medical devices, handheld instruments, and consumer electronics. Its robust design and versatile features make it a reliable choice for developers seeking a high-quality display solution.







SPECIFICATIONS

ITEM	DIMENSION	UNIT
Size	1.3	inch
Viewing Angle	12 0' CLOCK

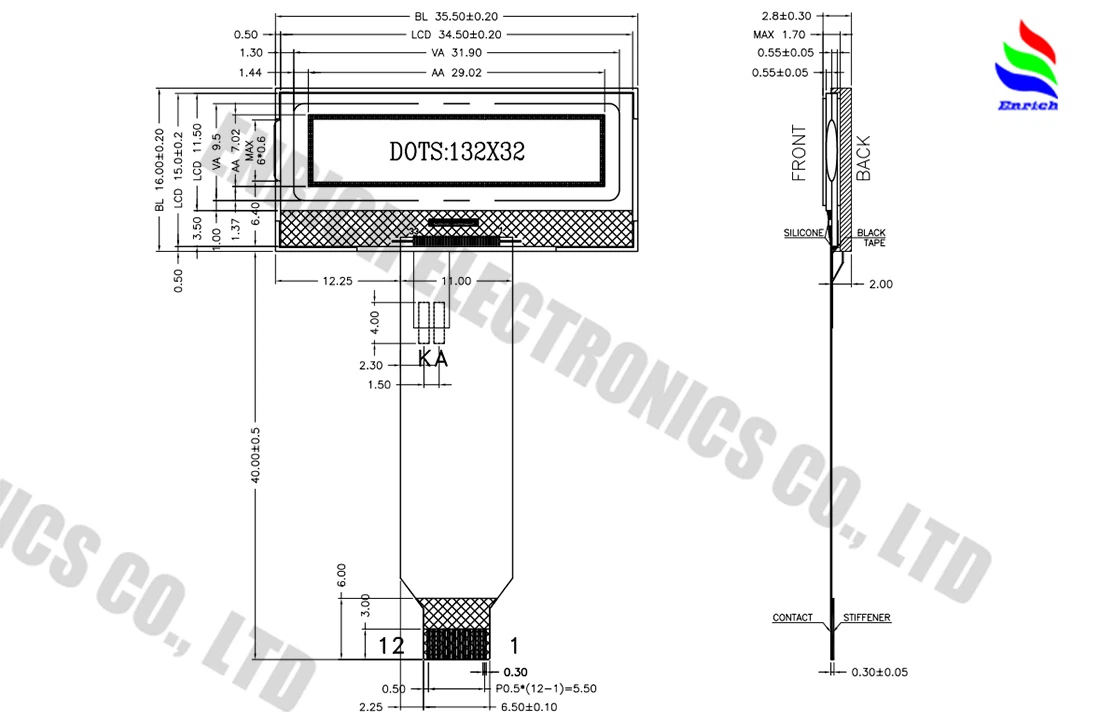

Outline Dimention	35.5x16x2.8	mm
Display rea	29.02 x 7.02	mm
Drive IC	ST7567
DISPLAY MODE	FSTN/TRANSFLECTIVE/POSITIVE
Connector	COG+FPC
Operating Temperature	-10° ~+60°	°C
Storage Temperature	-20° ~+70°	°C
Drive Method	1/32 Duty, 1/6 Bias, Vop=6.2V, Vdd=3.0V
Backlight	2 PCS WHITE LEDS
