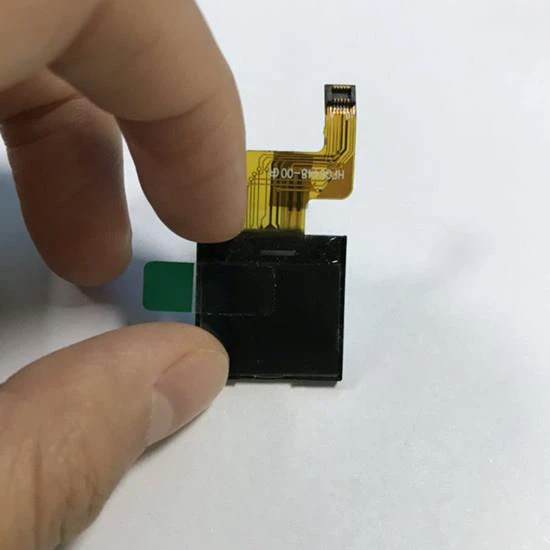

Monochrome 64*48 Graphic Lcd Module
Driving Method: 1/49 Duty 1/8 Bias
Connector: COG+FPC
Viewing Angle: 6 O'clock

Chinese supplier very small lcd screen monochrome 64*48 graphic lcd module
| 1.Display mode: | DFSTN/Transmissive/Negative |
| 2.Number of dots: | 64*48 |
| 3.Viewing angle: | 6 O'clock |
| 4.Drive Method: | 1/49 Duty 1/8 Bias |
| 5.Backlight: | None |
| 6.Connect: | COG+FPC |

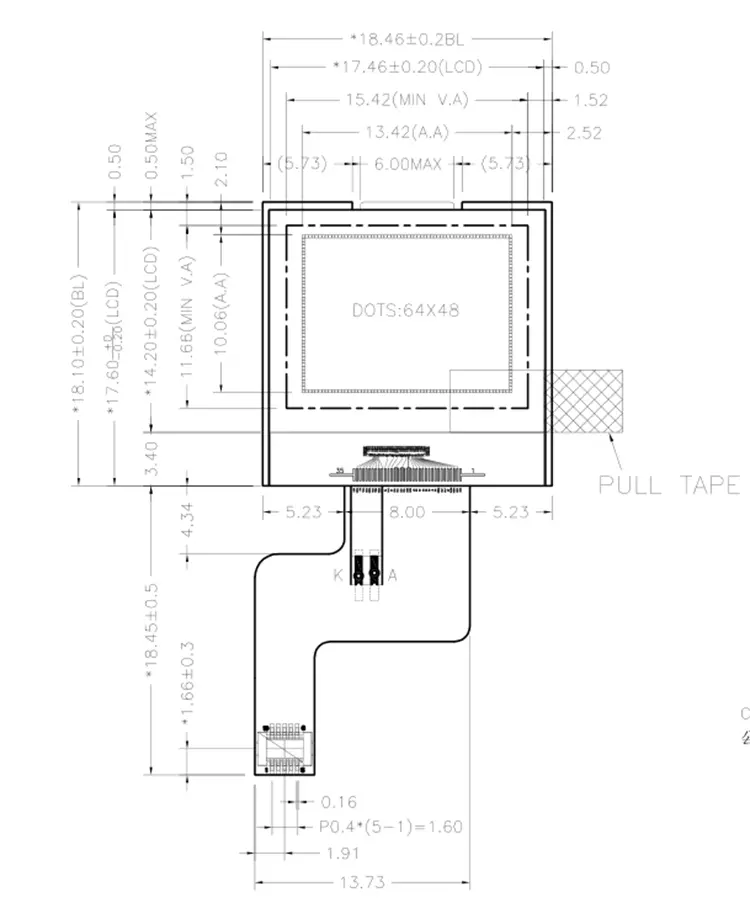

| 7.View area: | 15.42*11.66mm |
| 8.Active area: | 13.42*10.66mm |
| 9.Drive IC: | ST7567A |







1.Q:What kind of bussiness are you?
A:We are ODM & OEM manufactory which dedicates to designment and production of TN/HTN/STN/FSTN/DFSTN/VA monochrome LCD and small size OLED display. We have our own workshops, and there are over 300 workers in the workshops.
2.Q:Do you offer custom solution?
A: We are delighted to make an custom-made products for you. Tooling charge is required but can be refunded during the official order.
3.Q:How long it takes me to expect the sample?
A: Standard sample will be expected in 3~7 workdays after your placement. Custom-made sample will take much longer time, and finally depends on the situation. Sample charge and freight are required.
4.Q:How can I visit your factory?
A: It’s our pleasure that you want to pay a visit to our factory. You can get in contact with our sales before your flight, and we will make a great arrangement.

Hot Tags: monochrome 64*48 graphic lcd module, manufacturers, suppliers, factory, customized
