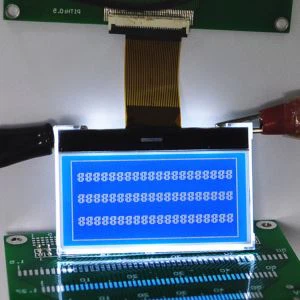

128*64 Parallel LCD Display Module
Description
This is an extremely low-power lcd graphic display 128x64. The integrated blue LED backlight easily illuminates this graphical lcd display in low-light conditions. This graphic lcd display module is perfectly suited for hand-held or any application requiring low power consumption or a very thin lcd display. It has an integrated ST7567 controller. The FFC is designed for inexpensive mass-production, with no need for a mating connector as the module solders directly to your PCB.
Key Features
|
128*64 Parallel LCD Display Module |
|
|
Resolution |
128x64 |
|
Outline Size |
57.6*40.5 mm |
|
Viewing Area |
53.6*28.6 mm |
|
Active Area |
48.60*24.93 mm |
|
Connector |
COG+FPC |
|
Driver IC |
ST7567 |
|
Backlight |
BLED |
|
Display Mode |
FSTN, Transflective, Positive |
|
Viewing Angle |
6:00 |
|
Drive Method |
1/64 duty, 1/7 bias |
|
Top |
-10℃ TO + 60℃ |
|
Tst |
-20℃ TO + 70℃ |
|
RoHS Compliant |
Yes |
LCD Drawing
Image Details
Application
1)ETC electronic tag
2)Meters & Instrument
3)Telecommunication
4)Domestic Electrical Appliance
5)U Shield
6)Office equipment
6)Medical & health equipment
7)3D & Shutter
8)Auto electronics
9)Fuel dispensers
