Custom VA 7 Segment LCD Display PIN Connect With Backlight
Display Mode:VA/Transmissive/Negative
Viewing Angle:12 O'clock
Backlight:White LED
The lcd display is monochrome,including TN,HTN,STN,FSTN,VA LCD display.
You can do custom product which 100% meets your requirement.
Our products have been widely used in consumer electronics and industrial meter filed,such as car audio,washing machine,cending machine,medical instrument, coffee machine.POS terminals,cash register,remote controller, counter display, portable power charger and so on

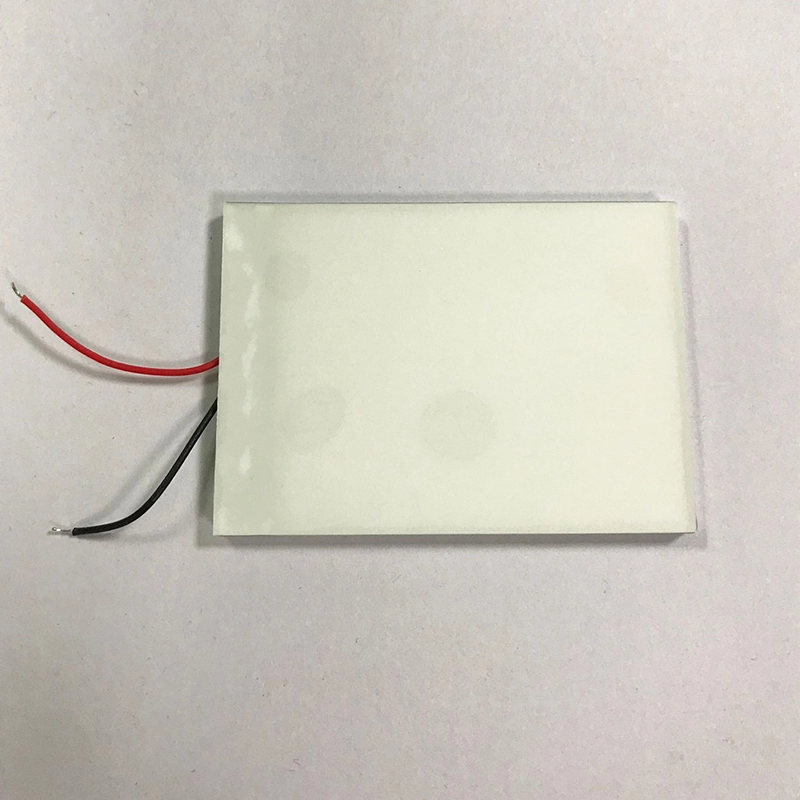

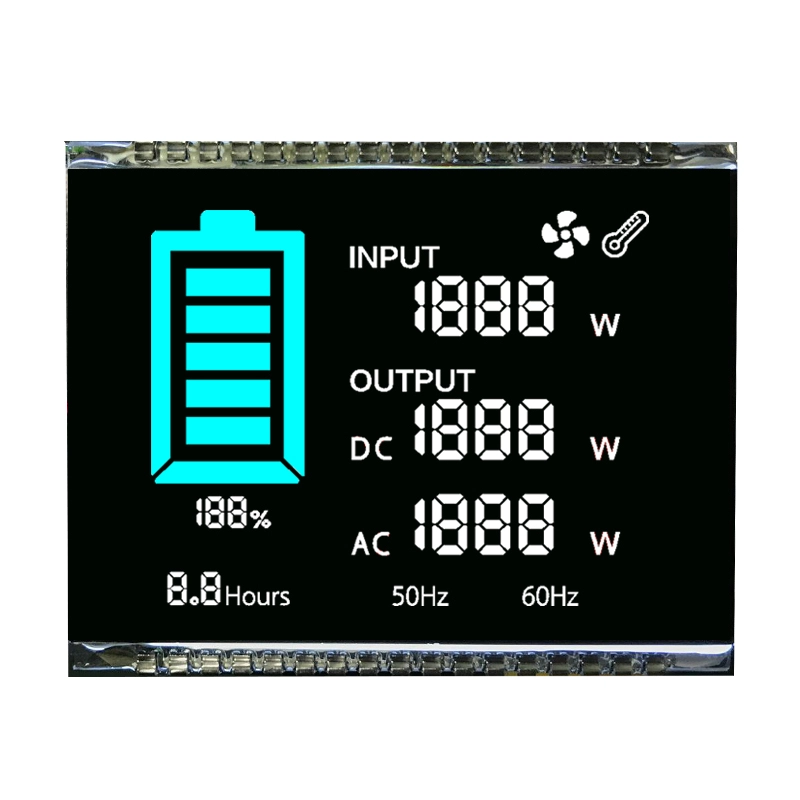

Product images
Display Drawing
| oduct Name |
Custom VA 7 Segment 4 Digits LCD Display PIN Connect With Backlight | ||
Outline Size
| 53.0x43.0mm | LCD Thickness | 2.80mm |
Viewing Area
| 50.0x35.0mm | Drive IC | N/C |
Display Mode
| VA/Negative/Transmissive | Backlight | White |
Resolution
| Segment | Working voltage | 5.0V |
Viewing Angle
| 12 O'clock | Drive method | 1/4 duty,1/3 bias |
Operating temperature
| -20℃~+70℃ | Storage temperature | -30℃~+80℃ |
Shipping:
(1)3-5 working days for sample
(2)25-30 working days for large order
(3)The goods will be shipped by DHL,TNT,UPS,Fedex(door to door service) or your appointed forwarder.
