Driver IC: HT1621
Backlight: White LED

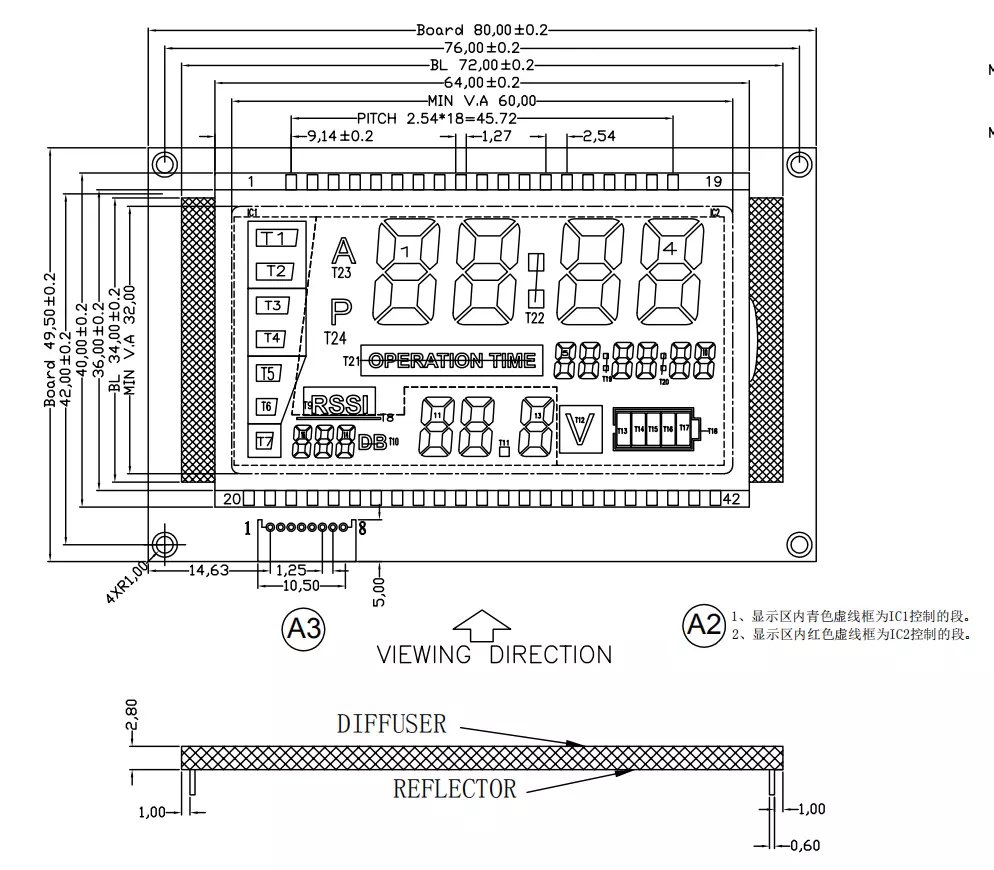

Outline Size: 80.0x49.50mm

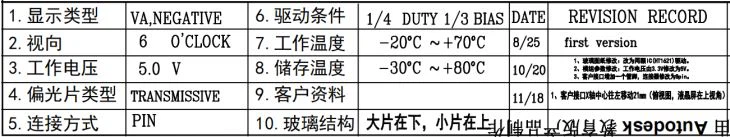

| 1.Product name : | ENH-VB003296-01 |
| 2.Size: | 80.0x49.50m |
| 3.Viewing area: | 60.0x32.0m |
| 4.Pin pitch : | 2.54mm |
| 5.Resolution: | Segment |
| 6.Display type : | VA/Transmissive/Negative |
| 7.Viewing angle: | 6 O'clock |
| 8.Drive method : | 1/4 duty, 1/3 bias |
| 9.Working temp : | -20℃~+70℃ |
| 10.Storage temp : | -30℃~+80℃ |
| 11.Connector: | COB |
| 12.Drive IC : | HT1621 |
| 13.Backlight : | White led backlight |
