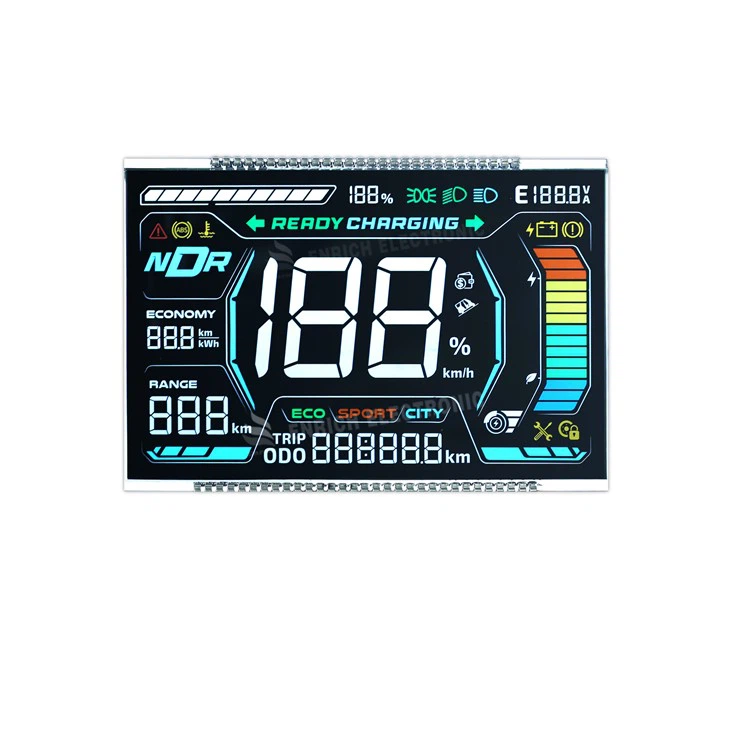

Customizable VA Segment LCD Module

ENH-SS626028-01

As a source manufacturer with nearly a decade of experience in the small and medium-sized LCD screen industry, we've learned a crucial lesson from countless supporting projects for automotive and medical equipment: a high-quality VA segment LCD module is never just a simple combination of parameters, but a blend of "precise adaptation" and "stable durability" - that's the core philosophy behind our Customizable VA Segment LCD Module. Unlike the standardized universal models on the market, this module is carefully polished by our team based on hundreds of industry cases, tailored to address the pain points of different scenarios. Every detail reflects our in-depth understanding of industry needs, rather than just a patchwork of specifications.

Let me first clarify the core positioning of this Customizable VA Segment LCD Module: it's not a "one-size-fits-all screen" but a "precision-customizable specialized screen," focusing on the high stability of VA display technology, combined with transmissive and negative display modes, capable of adapting to various harsh environments from automotive outdoors to medical operating rooms. Many cooperative customers initially ask: what makes your module stand out from other VA segment LCDs? The answer is simple: we understand scenarios, and more importantly, we understand customization - as a source manufacturer, we control the entire process from raw material procurement and panel production to module assembly, allowing us to turn customers' ideas directly into finished products, a capability that many intermediaries or small manufacturers lack.

Regarding the parameters that everyone cares most about, I won't list them rigidly. Instead, I'll break down the logic behind several key indicators based on our production experience and practical application scenarios. First, the display mode: three modes (VA/Transmissive/Negative) can be flexibly switched. While this may seem conventional, it's actually an optimized design targeting pain points in different industries. The negative display mode achieves a dark background with bright characters; in our actual tests, we found that this mode improves readability by more than 30% compared to ordinary positive display screens in low-light environments such as medical emergency scenes and night driving, effectively avoiding operational risks caused by reading errors. The transmissive mode adapts to various backlight needs, and with the backlight drive solution independently adjusted by us, the light is more uniform, avoiding local bright spots - this is a practical experience we've accumulated in supporting industrial control equipment.

In terms of viewing angle, we adopt a 6 o'clock wide viewing angle design, which is not an arbitrary setting. Previously, an automotive customer reported that ordinary LCD screens would experience blurred display and color distortion when viewed from the passenger seat or rear row. To address this pain point, we repeatedly adjusted the viewing angle and finally determined that 6 o'clock is the optimal choice - whether it's the driver's normal driving angle or rear passengers checking vehicle information, the display remains clear. This is one of the key reasons why this Customizable VA Segment LCD Module can adapt to various automotive instruments, fully aligning with the core needs of wide viewing angle segment LCDs.

The drive method adopts 1/4 Duty, 1/3 Bias, and a working voltage of 5.0V. Behind this parameter setting is our long-term observation of the power consumption needs of small and medium-sized devices. Many customers of portable medical equipment and outdoor power supplies are most concerned about power consumption. By optimizing the drive circuit design, we reduced power consumption by about 15% while ensuring stable driving, which not only adapts to the power supply needs of most small and medium-sized electronic devices but also extends the battery life of battery-powered equipment - a point that has been affirmed by many long-term cooperative medical equipment manufacturers.

Temperature resistance is one of the core advantages of our module. The operating temperature ranges from -30°C to +80°C, and the storage temperature from -40°C to +85°C. These parameters are not theoretical values from the laboratory but actual results obtained through thousands of extreme environment tests. Last winter, we supplied this module to an outdoor charging pile manufacturer in northern China. In a low-temperature environment of -35°C, the module still stably displayed charging status, voltage, current and other information without any black screen or freezing. In southern industrial workshops, at a high temperature of +75°C, its display effect remained unaffected - this is the confidence that allows us to promise that this module can adapt to automotive outdoor and harsh industrial environments.

The connector adopts a PIN interface, the backlight is equipped with 12 white LEDs, and the key dimensions marked with "*" can be customized. These details may seem simple, but they contain our production ingenuity. We use high-quality brass for the PIN interface, which has passed multiple plug-in tests to ensure stable connection and good contact, avoiding display failures caused by poor interface contact - this is particularly important in industrial control equipment. The 12 white LED backlights are designed with uniform distribution, and the brightness can be adjusted according to customer needs, ensuring readability in strong light environments while avoiding glare from excessive backlight brightness, adapting to different light environments. Dimension customization is our core advantage as a source manufacturer. Many customers have special equipment sizes that cannot be adapted by universal models on the market. We can accurately adjust key dimensions according to the equipment drawings provided by customers, eliminating the need for customers to make major modifications to their equipment, greatly reducing their integration costs and R&D cycles.

After talking about parameters, let's discuss the practical applications of this Customizable VA Segment LCD Module and our technical advantages. Many people ask: where can this module be used? Based on our cooperative cases, its core application areas are concentrated in automotive, medical, industrial control, and new energy. For each field, we have corresponding optimization solutions. For example, in the automotive instrument field, our module complies with the QC/T 1169-2022 automotive industry standard. In addition to wide viewing angle and high/low temperature resistance, we have also optimized the response speed to ensure that core information such as vehicle speed and rotation speed can be displayed in real time, ensuring driving safety. In the medical equipment field, our module complies with the IEC 60601-1 electrical safety standard and DICOM Part 14 image consistency standard. The high contrast design ensures accurate reading of patients' vital signs, detection data and other information, and our panels are designed without impurities or bubbles, avoiding misjudgment by doctors due to panel defects - this is the key reason why we can cooperate with many medical device manufacturers for a long time.

In the industrial control and new energy fields, the advantages of this module lie in anti-interference and adaptability. Industrial workshops have strong electromagnetic interference; by optimizing the internal circuit layout, we enhance the module's anti-interference ability, ensuring stable display of equipment operating parameters, fault prompts and other information. For outdoor power supplies and charging piles in the new energy field, which face problems such as outdoor strong light and high/low temperatures, the negative display mode and temperature resistance of our module can perfectly adapt. Moreover, the long-life design of the 12 LED backlights can reduce later maintenance costs - these are all experiences we have continuously optimized from actual cooperative cases, not theoretical empty talk.

As a source manufacturer, we are most proud not only of the quality of our products but also of our customization service capabilities and production strength. Many customers who come to us for customized modules are most worried about "sample inconsistency," "delivery delay," and "no after-sales guarantee." To address these pain points, we have established a complete customization service system: after a customer puts forward their needs, our technical team will connect within 24 hours, formulate an exclusive customization plan according to the customer's equipment scenario and usage needs, and the sample proofing cycle is controlled within 3-5 working days. If the sample is unqualified, we will re-proof for free. During mass production, we use modern production workshops and advanced testing equipment. Before leaving the factory, each module undergoes multiple tests including display effect, temperature resistance, interface, and anti-interference, ensuring a qualification rate of more than 99.8%. Moreover, without intermediate links, we can directly provide customers with factory prices, with cost performance far exceeding that of intermediaries.

Our customization service is not just a simple adjustment of size and display mode, but a comprehensive scenario adaptation. For example, if a customer needs a module suitable for a high-temperature industrial workshop, we will specifically improve the module's temperature resistance, optimize the packaging design, and enhance waterproof and dustproof capabilities. If a customer needs a module for portable medical equipment, we will further reduce power consumption and optimize the module thickness to facilitate equipment integration while ensuring display accuracy. Even if a customer needs to customize exclusive logos and character styles on the module, we can meet their needs - after all, the core of our customization is to help customers solve the problem of "difficult adaptation."

Some customers may also care about our qualifications and after-sales service, so I'll be honest here: we have ISO 13485 medical device quality management system certification, our products have passed RoHS environmental certification, and modules in the automotive and medical fields comply with corresponding industry standards, with complete test reports and qualification certificates available. In terms of after-sales service, we provide a 1-year warranty. For quality problems caused by non-human damage within the warranty period, we can repair or replace them for free. Moreover, we have a professional after-sales team that responds to customer needs within 24 hours on working days. Whether it's problems during product use or doubts during integration, we will fully assist in solving them.

Finally, I'd like to share one of our cooperative cases: last year, a customer specializing in portable monitors came to us. They had previously customized modules from other manufacturers, but either the display accuracy was insufficient or the readability was poor in low-light environments, failing to meet medical scenario needs. After understanding their needs, we specifically optimized the module's contrast and negative display mode, adjusted the backlight brightness, and accurately customized the module size according to their equipment dimensions. After sample proofing, the customer passed the test at one time, and we have maintained mass cooperation so far without any quality problems. In fact, this is the original intention of us developing this Customizable VA Segment LCD Module: not to make a "qualified" module, but to make an "adaptable" module that helps every customer solve pain points in actual scenarios.











SPECIFICATIONS



ITEM	DIMENSION	UNIT
Type	VA	inch
Viewing Angle	6 0' CLOCK
Outline Dimention	75x110x2(mm)	mm
Drive IC	--
DISPLAY MODE	VA/Transmissive/Negative
Connector	PIN
Operating Temperature	-20°- +70°	°C
Storage Temperature	-30°- +80°	°C
Drive Method	1/4 Duty,1/3 Bias,
Backlight	12 PCS WHITE LEDS
