0.42 Inch OLED Display I2C Interface
Description
0.42 inch white color OLED display with excellent readability for small print and graphics, The low power consumption is an advantage for handheld devices. There's no limit to the design possibilities for this OLED display.The SPI interface is popular for arduino projects. This product is RoHS Compliant.

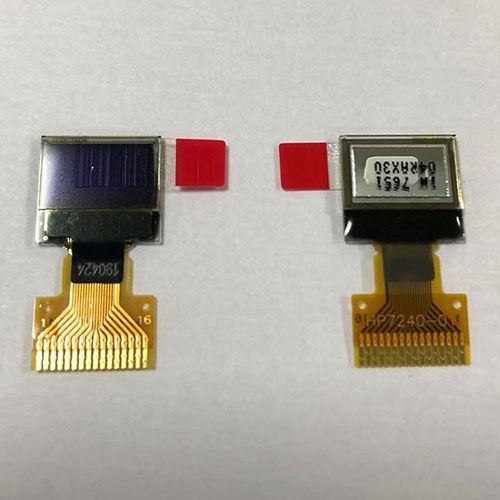

Image Details

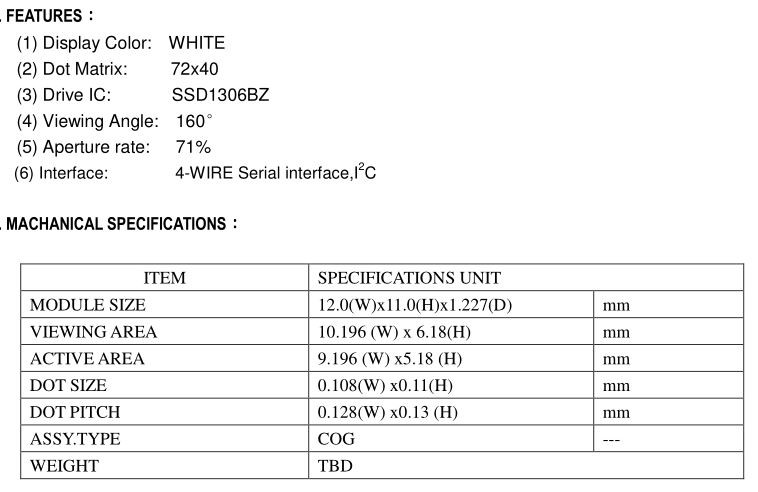

OLED Details
0.42 inch OLED Display I2C Interface | |
Size | 0.42” |
Control IC | SSD1306 |
Resolution | 72x40 |
Viewing Area | 10.196 (W) x 6.18(H) mm |
Physical Dimensions | 12.0(W)x11.0(H)x1.227(D) mm |
Interface | IIC Interface |
PIN Number | 16 PIN |
Display Color | White |
Operating Temperature | -40 to + 85 |
Operating Voltage | 3.3V-5V |
Module Weight | 4g |
MOQ | 1 Piece |
Test Platform | 1>51 2>STM32 3>STM8 4>Arduino |
Physical Size
OLED Applications
Electric cooker, video doorbell, water purifier, washing machine, air purifier, air-conditioner remote, refrigerator, home integrator, camera, hand-held digital video, projector, media player, tablet PC, etc.
