6.2'' TFT LCD Display Panels
♦Interface:24 Bit system parallel
♦View Direction: 6 0'clock
♦Driving IC: COG
♦Touch Screen : Without touch screen（customizable）
Description
Enhance your product with the addition of our 6.2" TFT LCD module. The active display area is 6.2 inches diagonally measured and the native resolution is 800*RGB*480. The TFT driver IC is interfaced via 24-bit digital display data and can support up to 16.7M colors to showcase crisp, detailed images and graphics. Features of this product are listed in the following table.
Functions & Features
| 6.2" TFTLCD Display Panel Functions & Features | |
| Parameter | Value |
| LCD Mode | a-Si TFT/transmissive |
| Color | 16.7M |
| Display Resolution | 800*RGB*480 |
| Outline Dimension | 88.2(W)*155.2(H)*4.75(T) |
| Active Area(A.A) | 77.232*(W)*137.52(H) |
| Pixel Pitch | 0.1719(H)x 0.1609(V) |
| Pixel Arrangement | RGB- Vertical stripe |
| Viewing Direction | 6 O'clock |
| Display Mode | Normally WHITE |
| IC Package Type | COG |
| MPU interface | 24 Bit system parallel |
| Back-light | White LED-3*7 |
Electrical Characteristics
|
Item |
Symbol |
Unit |
Value |
Unit |
||
|
Min |
Typ |
Max |
||||
|
Power voltage |
DVDD |
V |
3.0 |
3.3 |
3.6 |
|
|
AVDD |
V |
9.9 |
10 |
10.1 |
|
|
|
VGH |
V |
12 |
15 |
23 |
- |
|
|
VGL |
V |
-12.0 |
-7.0 |
-5.0 |
|
|
|
Input signal |
VCOM |
V |
TBD |
3.4 |
TBD |
|
|
Operating |
TOP |
℃ |
-20 to |
|
+70 |
|
Notes:
1. VGH is TFT Gate operating voltage.
2. VGL is TFT Gate operating voltage.The low voltage level of VGL signal must be fluctuates with same phase as Vcom.

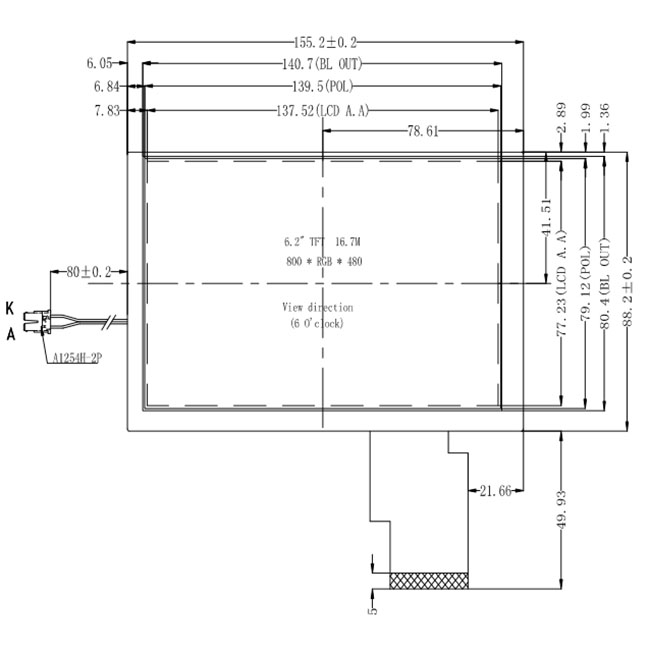

Physical Size
PIN Definition
| PIN:NAME | |||
| 1 | AGND | 31 | VSD |
| 2 | AVDD | 32 | MODE3 |
| 3 | VCC | 33 | RSTB |
| 4 | R0 | 34 | STBYB |
| 5 | R1 | 35 | SHLR |
| 6 | R2 | 36 | VCC |
| 7 | R3 | 37 | UPDN |
| 8 | R4 | 38 | GND |
| 9 | R5 | 39 | AGND |
| 10 | R6 | 40 | ACDD |
| 11 | R7 | 41 | VCOMin |
| 12 | G0 | 42 | DITH |
| 13 | G1 | 43 | NC |
| 14 | G2 | 44 | NC |
| 15 | G3 | 45 | V10 |
| 16 | G4 | 46 | V9 |
| 17 | G5 | 47 | V8 |
| 18 | G6 | 48 | V7 |
| 19 | G7 | 49 | V6 |
| 20 | B0 | 50 | V5 |
| 21 | B1 | 51 | V4 |
| 22 | B2 | 52 | V3 |
| 23 | B3 | 53 | V2 |
| 24 | B4 | 54 | V1 |
| 25 | B5 | 55 | NC |
| 26 | B6 | 56 | VGH |
| 27 | B7 | 57 | VOC |
| 28 | DCLK | 58 | VGC |
| 29 | DE | 59 | GND |
| 30 | HSD | 60 | NC |
Applications of Our LCD Panels:
Our products are widely used in:
- Banking machines
- Communication tools
- Household appliances
- Automobile instruments
- Mobile phones
- Video door phones
- E-books
- Stock mobile devices
- MP5 players
- Tablet PCs
- GPS navigators
For more details about our TFT LCD models, including size, resolution, brightness, operating temperature, or lifespan, please contact me.
