128x64 Dot Matrix LCD Display Module
Description

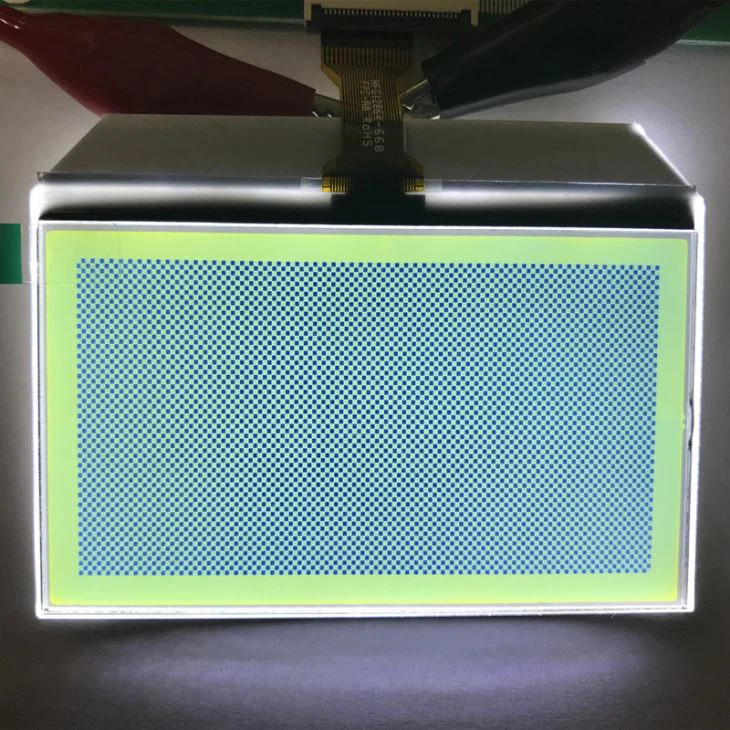

Our 128x64 Dot Matrix LCD Display Module has a viewing area of 66.50 x 38.40 mm and is the smallest of our standard 128 x 64 LCD modules. This LCD is suitable for a wide variety of applications and is available in several different backlight colors. The COG IC is the ST7567. This LCD has an FPC interface. It has high-quality LCD dot matrix screens. A uniform arrangement of individual pixels structured in rows and columns is referred to as a dot matrix.
Text and graphic displays, particularly in LCD technology, are included in the 128x64 Dot Matrix LCD Display Module. A letter set is frequently included when text is displayed as a dot matrix. Graphic displays with and without character sets are available in dot matrix technology, and some displays feature built-in memory for one or more screen pages. If you are interested in it, please do not hesitate to contact us for more information.
Key Features
|
128x64 Dot Matrix LCD Display Module |
|
|
Resolution |
128*64 |
|
Outline Size |
69.00*46.00 mm |
|
Viewing Area |
66.50*38.40mm |
|
Active Area |
60.755*32.935 mm |
|
Connector |
COG+FPC |
|
Driver IC |
ST7567 |
|
Unmarked Tolerance |
+-0.2mm |
|
Display Mode |
STN(Y-G), Transmissive, Positive |
|
Viewing Angle |
6:00 |
|
Drive Method |
1/65 duty, 1/9 bias |
|
Top |
-20℃ TO + 70℃ |
|
Tst |
-30℃ To + 80℃ |
|
RoHS Compliant |
Yes |
|
Please contact us for the datasheet and programming. |
|
LCD Drawing
LCD Specification
| Specifications: | ||
| 1 | Display Mode: | STN/Y-G/Positive/Transmissive. |
| 2 | Viewing Angle: | 6 0'clock. |
| 3 | Drive Method: | 1/65Duty,1/9Bias,VLCD=7.0±0.2V,VDD=3.0V |
| 4 | Backlight Type: | None. |
| 5 | Operating Temp: | -20°C~+70°C |
| 6 | Storage Temp: | -30°C~+80°C |
| 7 | Connector: | COG+FPC |
| 8 | DriveIC: | ST7567(COG) |
| 9 | Customer P/N: | -- |
| 10 | Unmarked Tolerance: | ±0.2mm |
| 11 | Requirements On Environmentall Protection: | RoHS |
