128x64 LCD Display With Back Light
Description
ENH-DG128064-04 is a monochrome graphic 128x64 LCD dot matrix display which is having the module dimension of 73.8x39 mm and AA size of 55.02x19.80 mm. The small dimension contributes to the convenience to carry the display. 128x64 LCD display with back light is built in withST7567 IC. This ENH-DG128064-04 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. As the range of operating and storage temperatures is wide, it's easy to maintetain the dispaly.
With the high resolution of 128*64, 128x64 LCD display with back light can provide an excellent visual experience for the user to see the image or watch the video. What's more, the backlight of white LED can solve the problem of poor light condition to help the user see the picture more clearly. In addition, the viewing area of the display is 73.8*39mm and the active area is 55.02*19.80mm. Furthermore, the display can be connected to COG and FPC while the diver IC is ST7567.
Details

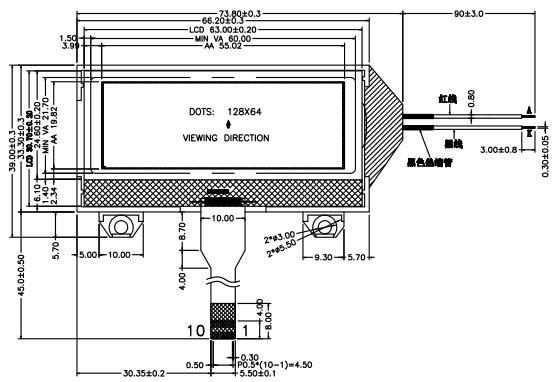

LCD Drawing
| Specifications: | ||
| 1 | Display Mode: | FSTN/Transflective/Positive. |
| 2 | Viewing Angle: | 6 0'clock. |
| 3 | Drive Method: | 1/65 Duty 1/9 Bias, Vop= 8.0V, Vdd= 3.0V |
| 4 | Top: | -20°C~+70°C, Tst: -30°C~+80°C |
| 5 | Connector: | COG+FPC, |
| 6 | Drive IC: | ST7565R |
| 7 | BackLight: | White I=15mA |
| 8 | With" *" Mark Dimensions Are lmportant Dimensions. | |
