LCD 128x64 Graphic COG Module
Description:

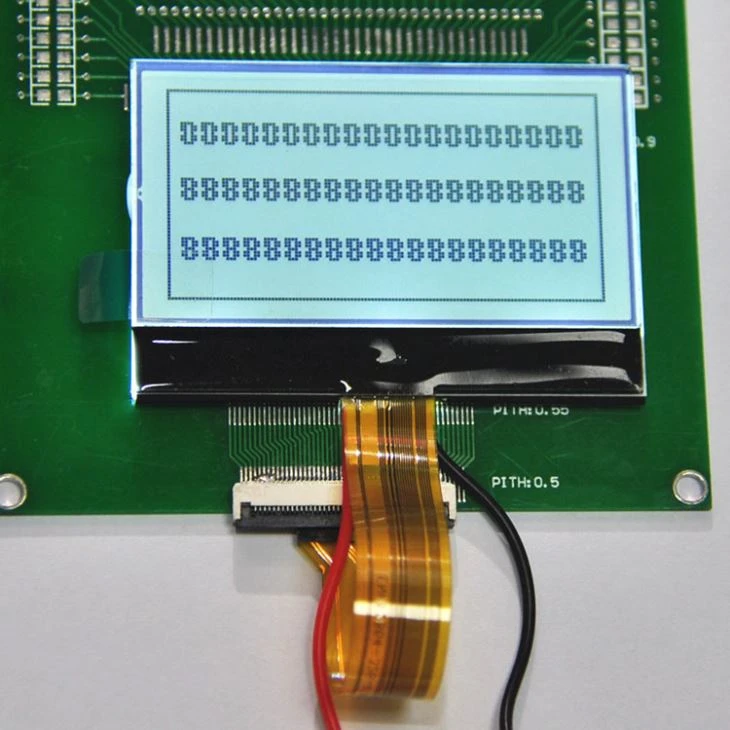

ENH-DG128064-48 is a white-background, 128×64 monochrome black pixel COG (Chip on Glass) LCD module with an ST7567 controller. It features a compact size, high contrast, wide operating temperature range, white LED backlight with fixing holes, FSTN-white LCD, FPC connection, and optional ZIF connector and LED backlight connector. The LCD 128×64 graphic COG module supports 6800 8-bit, 8080 8-bit parallel, and 4-wire serial SPI interfaces. Shenzhen Enrich Electronics Co., Ltd. is a professional LCD manufacturer in China.
The 128×64 graphic COG module displays graphical and textual information directly on your microcontroller projects. It supports various chips such as Arduino UNO and Mega, Raspberry Pi, 51 MCU, STM32, etc. The module is equipped with three white LED lights, offering super high contrast, bright, and crisp dots. Therefore, even tiny fonts are quite readable. We offer technical support, a software library, and a guidebook in the package.
Parameters:
| 1.Product name | ENH-DG128064-48 |
| 2 Size | 56.60x38.60mm |
| 3.Viewing area | 53.60x28.60mm |
| 4.Active area | 48.61x24.93mm |
| 5.Resolution | 128x64 |
| 6.Display type | FSTN/Transfective/Positive |
| 7.Viewing angle | O'clock |
| 8.Drive method | 1/64 duty, 117 bias |
| 9.Working temp | -10℃~+60℃ |
| 10.Storage temp | -20℃~+70℃ |
| 11.Connector | COG+FPC |
| 12.Drive lC | ST7567 |
| 13.Backlight | 3 pcs white led backlight |
| 14.Interface | Serial/Parallel |
| 15.Voltage | Vop=8.2V, Vdd=3.0V |
Specifications:
Interface:
| PIN | SYMBOL | PIN | SYMBOL |
| 1 | NC | 16 | VSS |
| 2 | CS | 17 | NC |
| 3 | RES | 18 | NC |
| 4 | AO | 19 | NC |
| 5 | R/W(/WR) | 20 | NC |
| 6 | RD(E) | 21 | VO |
| 7 | D0 | 22 | XVO |
| 8 | D1 | 23 | VG |
| 9 | D2 | 24 | NC |
| 10 | D3 | 25 | NC |
| 11 | D4 | 26 | NC |
| 12 | D5 | 27 | NC |
| 13 | D6 | 28 | C86 |
| 14 | D7 | 29 | PS |
| 15 | VDD | 30 | NC |
Detail images:
