ENH-DG132064-01 is the 1.5 inch white background with 132x64 monochrome black pixels cog(chip on glass) lcd module,ST7567 controller.The dimension size is 41.50x25.0mm and AA size is 34.30x14.06mm;which with 2 pcs Orange/Blue LED.The LCD is with FSTN material of 6 O’clock viewing angle.We also have other pixels LCD such as 128x32,132x32,128x64,128x96,160x128,160x160 and so on,could also custom according to your requirement.

Send Inquiry

Product Introduction

Description:

ENH-DG132064-01 is a 1.5-inch LCD module with a white background and 132×64 monochrome black pixels. It features a COG (Chip on Glass) design and uses an ST7567 controller. The module dimensions are 41.50×25.0 mm, with an active area (AA) size of 34.30×14.06 mm. It is equipped with 2 orange/blue LEDs.

The LCD uses FSTN material and has a 6 o'clock viewing angle. We also offer other LCD pixel configurations, such as 128×32, 132×32, 128×64, 128×96, 160×128, and 160×160. Custom designs are available to meet your specific requirements.

Parameters:

1.Product name	ENH-DG132064-01
2.BL size.	41.50x25.0mm
3.LCD size.	39.50x23.0mm
4.Viewing area	36.50x15.60mm
5.Resolution	132x64
6.Display type	FSTN/Transflective/Positive
7.Viewing angle.	6 O'clock
8.Drive method	1/64 duty, 1/9 bias
9.Working temp	-20C~+70℃
10.Storage temp	-30℃~+80℃
11.Connector.	COG+FPC
12.Drive lC	ST7567
13.Backlight	Orange/Blue LED

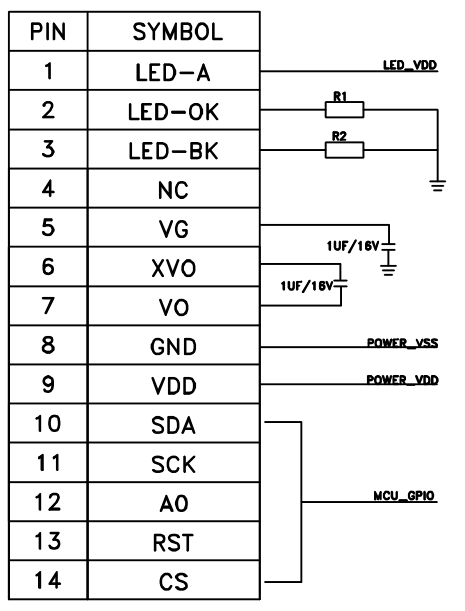

1 4.Interface.	Serial/Parallel
15.Voltage.	3.0V
