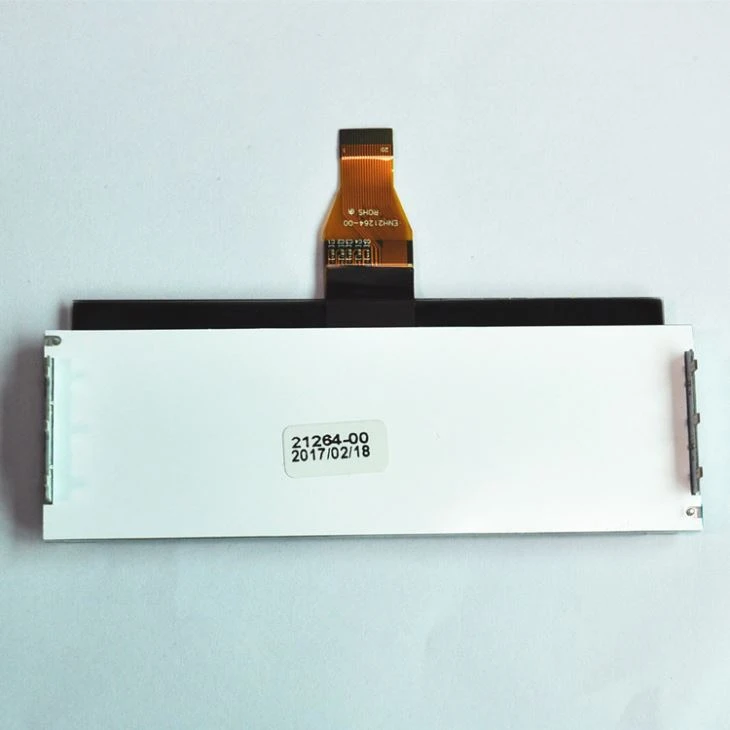

212x64 Graphic COG Module,LCD Display
Description:
ENH-DG212064-01 is a 212×64 pixel LCD module with a positive LCD, a gray background, and black characters. It features a backlight with 6 white LEDs and 6 blue LEDs, a UC1611S controller, and a 6 o'clock viewing angle. The module supports a 16-grayscale LCD display.
For this LCD, we offer two types: one with a gray and the other with a black .
Shenzhen Enrich Electronics Co., Ltd. is a professional LCD manufacturer located in Shenzhen, China.
Parameter:
| 1.Product name: | ENH-DG212064-01 |
| 2.BL size: | 124.0x45.50mm |
| 3.LCD size: | 114.60x38.50mm |
| 4.Viewing area: | 108.0x35.0mm |
| 5.Resolution: | 212x64 |
| 6.Display type : | FSTN/Transflective/Positive |
| 7.Viewing angle: | 6 O'clock |
| 8.Drive method : | 1/64 duty, 1/9 bias |
| 9.Working temp: | -20℃~+70℃ |
| 10.Storage temp: | -30~+80℃ |
| 11.Connector: | COG+FPC |
| 12.Drive lC: | UC1611S |
| 13.Backlight : | White and Blue |
| 1 4.Interface: | Serial/Parallel |
| 15 Voltage: | Vdd=3.3V |
FAQ:
Q: Could you help to design the LCD?
A: Yes, just tell us your application and requirement,then we could provide the complete LCD design.
-
Q: May I ask can I get only 1 to 5 pcs samples?
A: Yes,samples are available in any time.
-
Q: Can I have a factory tour?
A: Yes, warmly welcome your factory tour,and any time is available for us.
-
Q: I only want the white led backlight, is it OK?
A: Yes,we could adjust the color of backlight.
