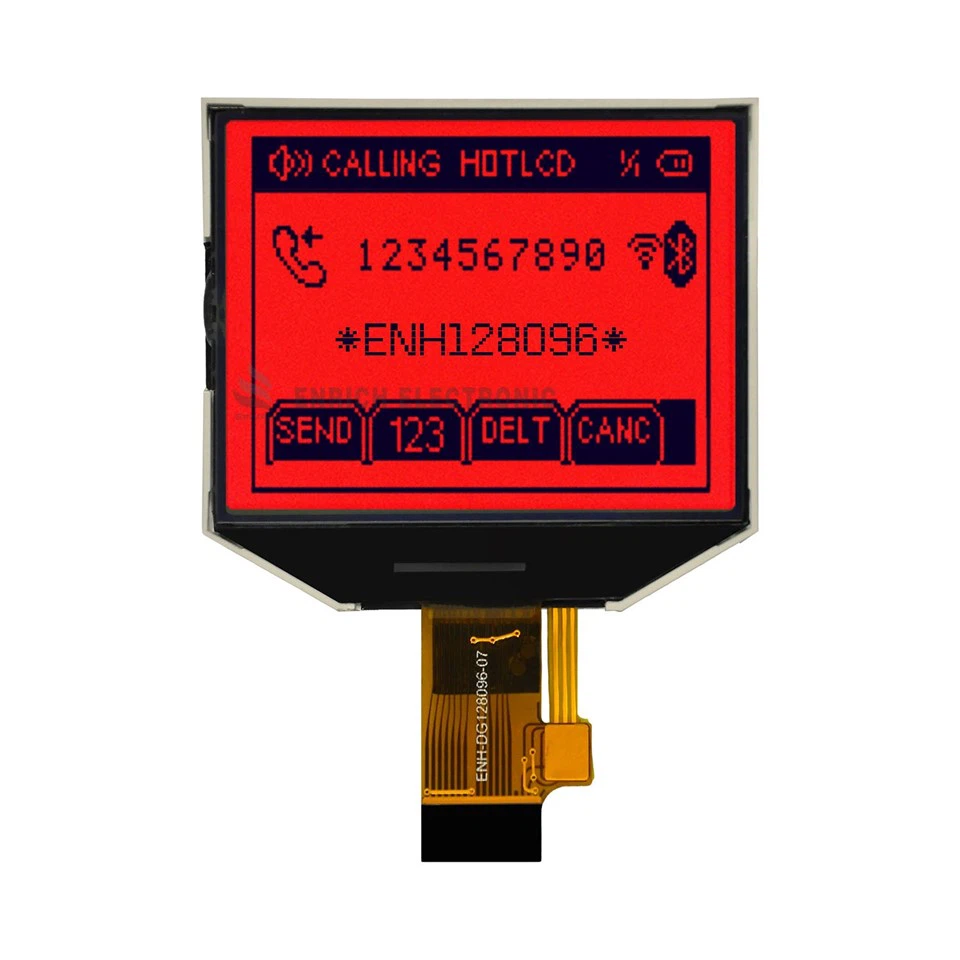

Enrich 128x96 Dots Matrix LCD Module ST75161 FSTN COG Graphic LCD Display



The Enrich 128x96 dot matrix LCD module delivers professional-grade display performance with its ST75161-driven FSTN technology. Its COG construction combines reliability with an ultra-compact footprint, ideal for space-sensitive designs. The optimized 12 o'clock viewing angle ensures perfect readability from the primary operating position.



This module features superior optical performance with FSTN technology that provides wide 160-degree viewing angles and high 10:1 contrast ratios. The anti-glare surface treatment maintains excellent visibility even in bright sunlight, while the rugged COG packaging offers vibration-resistant durability for challenging industrial applications.



Designed for critical applications across medical, industrial, and instrumentation fields, this versatile display supports both character and graphic modes with rapid response times. Its robust construction withstands extreme temperatures from -20°C to +70°C, guaranteeing reliable operation in demanding environments. The module's combination of optical clarity and environmental durability makes it an outstanding choice for professional display solutions.



SPECIFICATIONS

ITEM	DIMENSION	UNIT
Size	2.3	inch
Viewing Angle	12 0' CLOCK
Outline Dimention	44x40x4.5(MAX)	mm
Display rea	36 x 27	mm
Drive IC	ST7567
DISPLAY MODE	FSTN/POSITIVE/TRANSFLECTIVE
Connector	COG+FPC
Operating Temperature	-20°- +70°	°C
Storage Temperature	-30°- +80°	°C
Drive Method	1/96 Duty,1/11 Bias
Backlight	3 PCS Red Green LEDS
