Custom Segment LCD Display With Driver
Description:
ENH-SS912006-01 is the custom segment lcd display,which the dimension size is 50.0x40.0mm,viewing area is 42.0x30.0mm,white led backlight with HT1621 controller.We can customize according to your special design and could send samples for test firstly.
what is Segment LCD Display With Driver?
A Segment LCD Display with a Driver is a type of display composed of liquid crystal elements and a segment driver, primarily used to display letters, numbers, and symbols. Its working principle involves the segment driver converting signals from the circuit into control signals for the liquid crystal elements, which then control each segment of the display to produce the desired output.
Specification:
| 1.Product name | ENH-SS912006-01 |
| 2 PCB size | 50.0x40.0mm |
| 3.Viewing area | 42.0x30.0mm |
| 4.Display mode | FSTN/Transflective/Positive |
| 5.Resolution | Segment LCD |
| 6.Display color | Black On White |
| 7.Viewing angle | 6 O'clock |
| 8.Drive method | 1/4 duty, 1/3 bias |
| 9.Operating temperature | -20℃ to +70℃ |
| 10.Storage temperature | -30℃ to +80℃ |
| 11.Connector | PCB |
| 12. Drive lc | HT1621 |
| 13.Backlight | White |

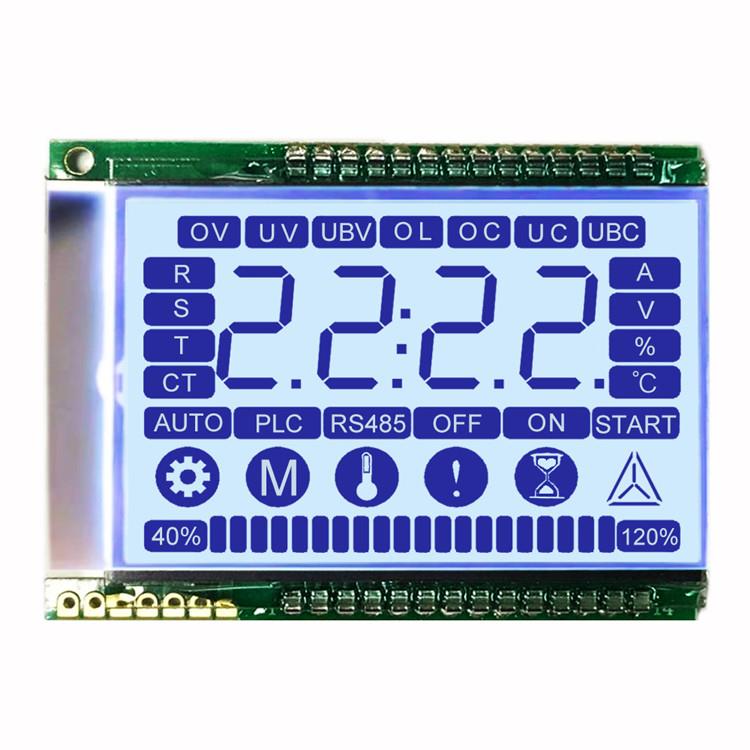

LCD Images:
LCD Drawing:
Application:
Contact us:
