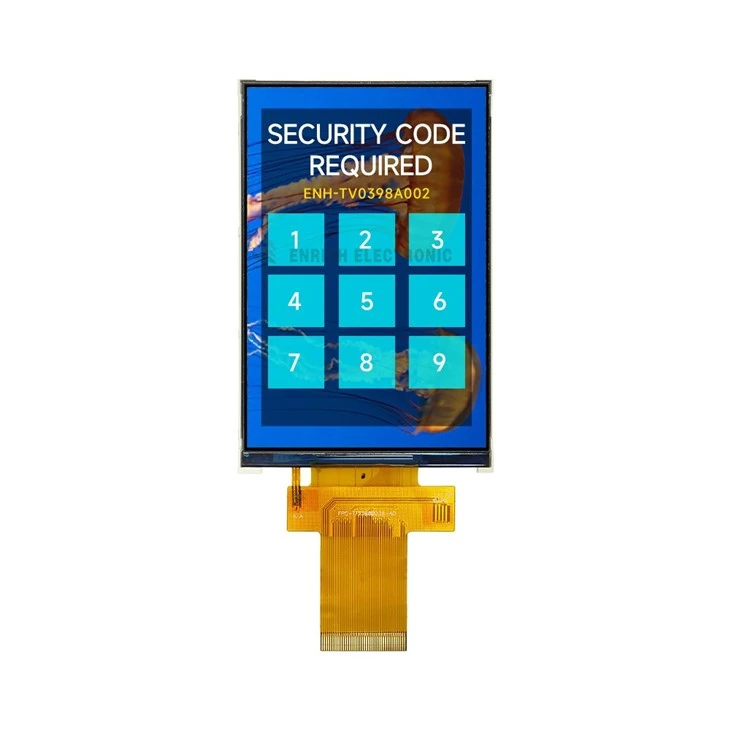

3.98 Inch TFT LCD Module



ENH-TV0398A002 Description



The 3.98 Inch TFT LCD Module sits in a sweet spot that few display sizes can claim-large enough to show meaningful data at a glance, yet compact enough to fit into handheld medical devices, industrial control panels, and smart home interfaces. After shipping thousands of these units, I can tell you exactly where it excels and where it doesn't.

Our 3.98 Inch TFT LCD Module is built around the ST7796U driver IC, which has become something of a workhorse in the 320x480 space. The 8-LED parallel backlight delivers 320 cd/m² typical brightness, and the IPS panel provides viewing angles that matter when someone glances at a screen from the side of a hospital bed or a factory floor.

Let me walk you through what actually matters about this module-not the marketing checklist, but the engineering decisions that affect how it performs in the real world.



Detailed Parameter Analysis

The 320×480 Resolution. On a 3.98-inch diagonal, 320×480 delivers approximately 145 PPI. That's not retina-class, but for devices viewed at 30–50 cm-think medical handhelds, industrial HMIs, and smart home panels-it's perfectly legible. More importantly, it's a resolution that runs smoothly on moderate microcontrollers. The frame buffer for RGB565 color depth is just over 307,000 bytes, which fits comfortably within the RAM of an ESP32 or STM32 without external memory.

The ST7796U Driver IC. The ST7796U supports 320×480 resolution at a 60Hz refresh rate, meeting most conventional display requirements such as text and simple graphics. It includes built-in hardware acceleration functions like scrolling and cursor control. What the datasheet doesn't emphasize enough is the ecosystem-the ST7796U is supported by TFT_eSPI, LVGL, and Adafruit graphics libraries. We provide initialization code for STM32, ESP32, and Arduino, all tested in production.

The 8-LED Backlight. Eight LEDs in parallel, each drawing 20 mA, deliver 320 cd/m² with uniform illumination across the 92.25 × 60 mm outline. Why 8 LEDs instead of 4? Because larger panels need more light sources to avoid dark corners. We learned this from a medical device customer who complained about uneven brightness on a 4-LED design. The 8-LED configuration solved that problem completely.

The Polarizer Stack. Upper matte 0° reduces glare from overhead lighting-critical in hospital rooms and industrial control centers. Lower glossy 90° maximizes light transmission through the panel. This combination achieves a 1000:1 contrast ratio, with deep blacks when pixels are off.

The Color Coordinates. X: 0.25±0.03, Y: 0.26±0.03. That's a consistent white point across production batches. For medical devices displaying color-critical diagnostic images, this consistency matters. We measure every batch.



Application Scenarios

The 3.98 Inch TFT LCD Module is used across several industries:

Medical Diagnostics: Portable ultrasound units, endoscope displays, patient monitors, infusion pumps, and handheld vital sign monitors. The IPS all-angle viewing ensures clinicians can read data without tilting the device.

Industrial Automation: CNC machine interfaces, SCADA monitoring terminals, PLC programming panels, and robotic control systems. The wide operating temperature range supports factory floor conditions.

Handheld Devices: POS terminals, data loggers, inventory scanners, and portable testing equipment. The 2.2 mm thin profile and moderate power consumption suit battery-powered designs.

Smart Home: Thermostat panels, air quality monitors, appliance control interfaces, and home automation hubs. The 3.98-inch diagonal is large enough for readable UI elements but compact enough for wall mounting.

Security Monitoring: CCTV control panels, access control terminals, and surveillance system interfaces.



Key Features and Functional Advantages

Proven ST7796U Driver Ecosystem. The ST7796U has years of real-world validation. It's supported by every major graphics library-TFT_eSPI has a dedicated ST7796_Init.h initialization sequence, and LVGL runs smoothly on this driver. When you're debugging at 2 AM, knowing that thousands of other engineers have already solved the same problems matters.

320×480 Resolution. This resolution hits the sweet spot between visual clarity and resource efficiency. The 145 PPI pixel density renders 8-point text cleanly, and the 3:2 aspect ratio works well for both portrait and landscape orientations. The frame buffer fits within the RAM of most mid-range microcontrollers, eliminating the need for external memory chips.

IPS All-Angle Viewing. The 85/85/85/85-degree viewing angles mean consistent color and contrast from any direction. In a medical cart application where nurses view from up to 60 degrees off-axis, this isn't a nice-to-have-it's essential for patient safety.

8-LED Parallel Backlight. Eight LEDs provide 320 cd/m² with less than 15% luminance variation across the active area. The parallel configuration means each LED sees the same voltage, ensuring uniform aging across the backlight's lifetime.

Ultra-Thin 2.2 mm Profile. At just 2.2 mm thick, this module fits into slim handheld enclosures. The 92.25 × 60 mm outline is designed for standard industrial panel cutouts.

Wide Operating Temperature. Rated for -20°C to +70°C operation and -30°C to +80°C storage. We've tested 100 units at +70°C for 72 hours-no flicker, no color shift.

RoHS and REACH Compliant. All materials meet global environmental standards. Certificates are available upon request.



Application Areas in Emerging Industries

Beyond the traditional markets, the 3.98 Inch TFT LCD Module is finding its way into several emerging sectors:

Telemedicine and Remote Patient Monitoring. The pandemic accelerated the adoption of remote care, and compact TFT displays are at the heart of home-use medical devices. From wearable cardiac monitors to portable blood analyzers, the 320×480 resolution provides enough clarity for vital sign readouts while keeping power consumption low enough for battery-powered operation. The IPS viewing angles ensure that elderly patients or caregivers can read the display without holding it at a perfect angle.

Industrial IoT and Edge Computing. Smart factories are deploying edge devices that collect and display real-time production data. The 3.98-inch size fits neatly into DIN-rail mounted terminals and machine-side interfaces. The ST7796U driver's SPI interface pairs well with industrial microcontrollers, and the -20°C to +70°C temperature range covers most factory environments.

Smart Agriculture. Precision farming equipment-portable soil testers, environmental monitoring stations, and livestock health trackers-needs displays that work in variable outdoor conditions. The 320 cd/m² brightness is sufficient for shaded outdoor use, and the IPS panel maintains readability when viewed from the side of a tractor cab or handheld device.

Autonomous Robotics. Delivery robots, warehouse automation vehicles, and service robots all need operator interfaces. The 3.98-inch diagonal provides enough screen real estate for status readouts and simple menu navigation without overwhelming the robot's mechanical design.

Last-Mile Delivery Terminals. Handheld scanners and delivery confirmation devices benefit from the 320×480 resolution, which can display customer signatures, barcodes, and delivery instructions clearly. The thin profile keeps these devices comfortable for all-day use.

Smart Retail. Interactive kiosks, digital shelf labels, and self-checkout terminals are increasingly using compact TFT displays. The IPS viewing angles ensure that customers can read promotions and instructions from various positions.

Medical Aesthetics and Wellness. Devices like handheld skin analyzers, beauty treatment wands, and wellness trackers are adopting compact TFT displays. The full-color capability and moderate resolution are sufficient for graphical user interfaces and status feedback.

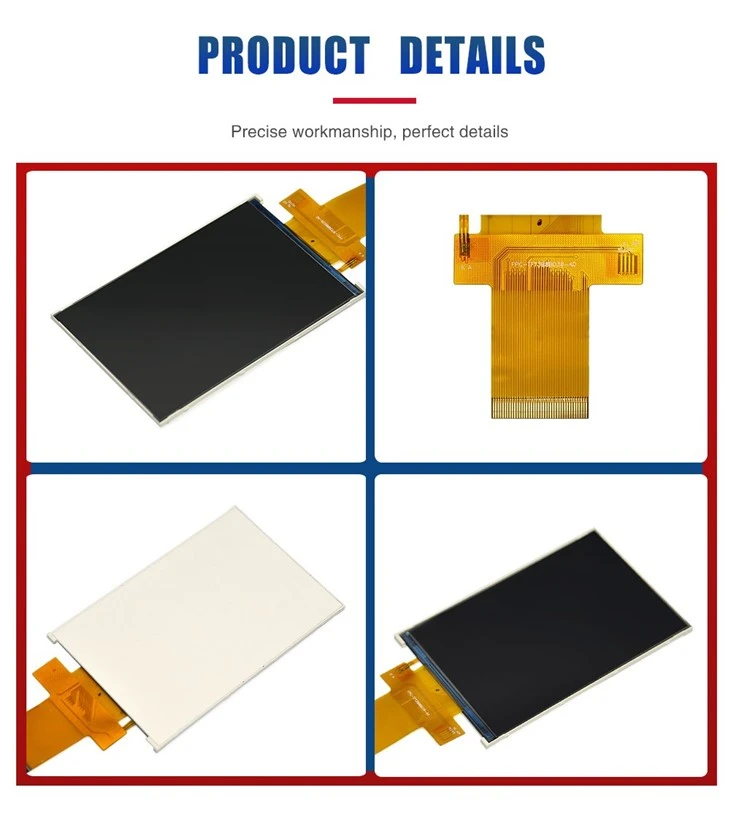

Product Details and Visual Features

FPC Configuration. The standard module uses a 40-pin, 0.5mm pitch FPC with gold-plated pads and a reinforced stiffener. The FPC exit direction is bottom-center by default. The stiffener placement is critical-we place it with a 5mm safety margin from the bend line. Early designs had failures when folded into tight enclosures; this design has been tested to 1,000 flex cycles.

Backlight Uniformity. Eight LEDs are positioned along the longer edge of the 92.25 × 60 mm outline, ensuring even illumination. The typical brightness is 320 cd/m², with less than 15% variation across the active area. Each batch is tested with a 5×5 grid luminance measurement.

Polarizer Stack. The upper matte polarizer (0°) reduces glare from overhead lighting, while the lower glossy polarizer (90°) maximizes light transmission. This stack achieves a 1000:1 contrast ratio typical.

Mechanical Integration. The outline dimensions are 92.25 × 60 × 2.2 mm. The active area is centered within the outline. Detailed 2D and 3D CAD drawings are provided with every sample shipment.

ESD Protection. The module includes ESD protection circuitry rated for ±8kV air discharge. This is essential for medical and industrial devices that may be handled in dry environments.



Certifications

RoHS Compliant: Lead-free materials, safe for global markets.

REACH Compliant: Meets EU chemical safety standards.

ISO 9001:2015: Quality management system certified.

ISO 14001:2015: Environmental management system certified.

Manufacturing Quality

Our facility uses automated AOI optical inspection for FPC bonding with a rejection rate under 0.8%. Every module undergoes 100% visual inspection for cosmetic defects, and we perform sample-based electrical testing per batch. The 3.98 Inch TFT LCD Module is manufactured using amorphous silicon TFT technology, ensuring consistent performance across every unit.



Customization Services

As a factory-direct manufacturer, we offer the following customization options:

FPC Customization. Length modification from 20mm to 200mm, exit direction (bottom, side, or custom angle), connector type (ZIF, pin header, or custom soldering pads), mounting holes, and gold finger dimensions. One medical device customer needed a 150mm FPC to route around a battery compartment; we requalified the bonding process and delivered in four weeks.

Touch Panel Integration. Capacitive touch (CTP) using FT3267 or CST826 controllers, or resistive touch (RTP). CTP adds approximately 0.8mm to total thickness. Optical bonding or air gap options are available.

Cover Glass. Tempered glass lens with anti-glare coating, anti-fingerprint coating, or silk-printed decoration (logos, borders, or button legends). Custom glass tooling requires 4-5 weeks.

Brightness and Backlight. Standard 320 cd/m². High-brightness versions up to 1000 cd/m² are available for outdoor or brightly lit clinical environments. Brightness adjustment requires changes to LED count or optical film stack.

Interface Variants. Standard interface is 4-wire SPI. Alternative interfaces include 3-wire SPI, MCU 8-bit parallel, and 16-bit parallel.

Operating Temperature Extension. Extended range to -30°C ~ +80°C operation (standard is -20°C ~ +70°C). This requires material changes in the LCD fluid and polarizer adhesive.





 ● OEM&ODM             ● NO MOQ                ● SAMPLES IN STOCK              ● TESTING BOARD OPTIONAL

















SPECIFICATIONS

ITEM	DIMENSION	UNIT
Size	3.98	inch
Outline Dimention	92.25x60x2.2	mm
Operating Temperature	-20°- +70°	°C
Storage Temperature	-30°- +80°	°C
Resolution	320x480
