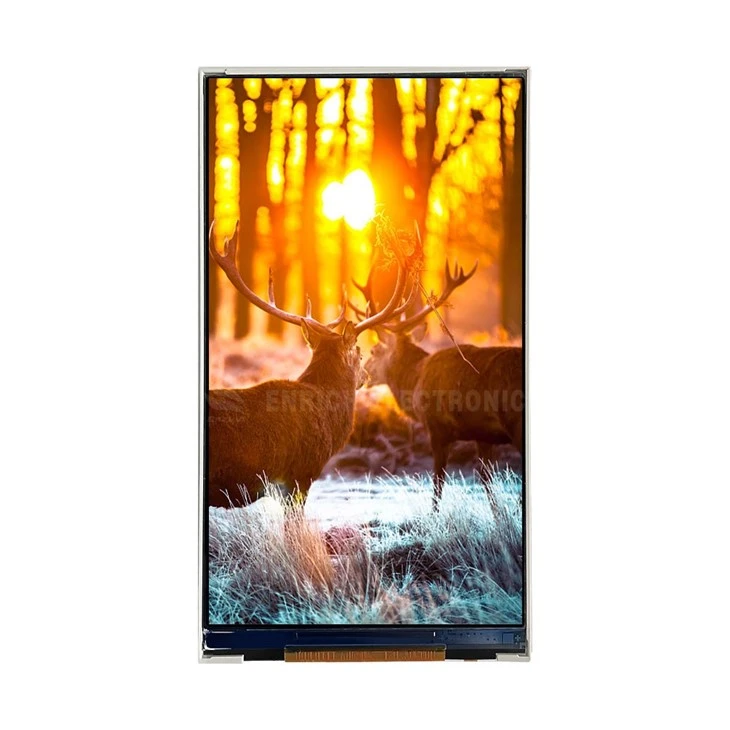

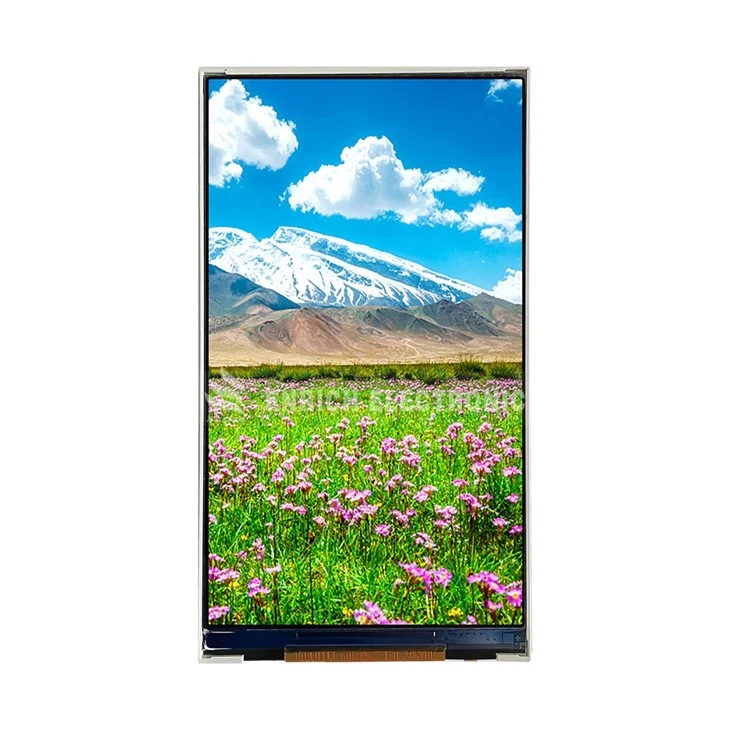

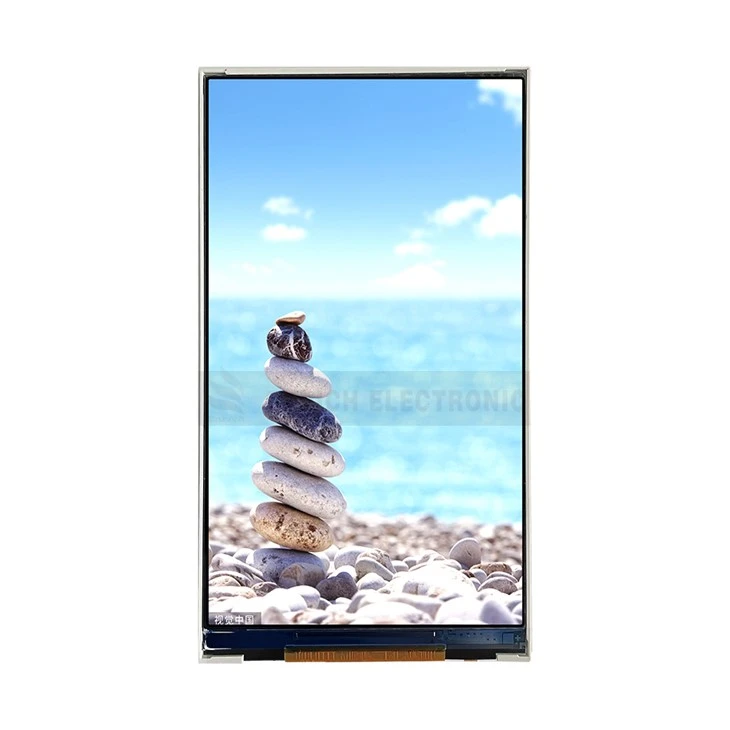

4.45 Inch TFT LCD Module

ENH-TV0454A001 Description





With years of experience in R&D and manufacturing of small and medium-sized LCD displays, we fully understand the real demands of engineers selecting screens for industrial, medical and vehicle embedded projects. Developers need a fixed standard size and native resolution, meanwhile requiring outstanding wide viewing angle performance, stable driver compatibility, reliable backlight operation and ultra-slim structure design. Our 4.45 Inch TFT LCD Module is precisely engineered for mainstream vertical embedded applications and has become one of our most mature standard models.

Product Basic Information

This module adopts original BOE 4.45-inch IPS LCD panel, featuring native 480RGB×854 resolution with a classic 18:9 vertical aspect ratio, perfectly matching the structural layout of portable handheld devices and compact medical equipment.

Designed with full all-direction viewing performance, it is fitted with customized polarizer of top sand 0° and bottom light 90°, effectively weakening ambient light reflection and presenting pure and natural color performance under regular indoor lighting conditions.

It is equipped with mass-production proven GC9503CV driver IC, featuring great compatibility and long-term market verified stability. The backlight system consists of 10 LED beads arranged in a mature 5S2P circuit layout, with typical forward voltage at 15±0.8V and working current at 40mA, delivering even brightness without dark corners.

The module comes with standard 40Pin FPC connector and adopts MIPI high-speed interface, compatible with most mainstream industrial mainboards, Android and Linux system solutions. The overall outline dimension is 109×60×2.15mm, while the active display area reaches 98.64×55.44mm. With an ultra-thin thickness of only 2.15mm, it fits perfectly into various compact embedded shell structures.

It works steadily within -20℃~+70℃ under normal application scenarios, and can be stored safely from -30℃ to +80℃. Equipped with standard brightness 350cd/m² and contrast ratio 800:1, it fully meets high-definition display needs for industrial human-machine interaction and portable medical devices.

Product Features

Field engineers are well aware that ordinary TN panels suffer obvious color shift and whitening when viewed from side angles. Differently, the 4.45 Inch TFT LCD Module applies native IPS technology, delivering true 178° ultra-wide viewing angle without color distortion at any viewing position. It keeps clear image performance even when installed sideways or viewed by multiple users at the same time.

The 480×854 resolution is specially optimized for vertical screen applications rather than simple cropped specification. It delivers sharp text edge and natural image layering, ideal for data parameter display, waveform interface and menu UI presentation, especially suitable for numerical reading and simple graphic display on medical devices.

We insist on adopting 10 evenly arranged LED beads with 5S2P circuit instead of simplified backlight design. This mature configuration balances power consumption and uniform brightness, avoiding local overheating after long-time operation. Cooperated with low-power tuning of GC9503CV driver IC, it greatly extends standby and working life of portable devices.

MIPI interface owns strong anti-interference capability and sufficient transmission bandwidth. The gold-plated 40Pin FPC cable ensures stable connection and durable plug-and-play performance. It matches mainstream MCU solutions like STM32, Rockchip and Allwinner directly, greatly shortening project debugging cycle.

During material selection, we reserved wide temperature adaptability for complex industrial and vehicle environments. The screen maintains stable output without flickering, screen distortion or color drifting within normal high and low temperature range. The slim 2.15mm thickness saves internal space reservation and offers more flexibility for overall structural design.

Adopting original BOE glass substrate, the backlight service life exceeds 50,000 hours, supporting 24/7 continuous operation all year round. It reduces later replacement frequency and lowers long-term maintenance cost for industrial onsite application.

Product Applications

Based on our actual project landing experience with global clients, the 4.45 Inch TFT LCD Module is not merely a general-purpose display screen. It is specially tailored for embedded projects requiring vertical installation, full viewing angle and compact structural space.

In industrial automation, it is widely used as HMI human-machine interface, PLC control terminal, handheld industrial detector and supporting display part for automation equipment, performing steadily under complex electromagnetic and temperature environment in workshop.

It gains high recognition in portable medical devices, perfectly matching basic medical display standards for portable ECG monitors, electronic blood pressure meters, blood glucose analyzers and rehabilitation equipment control panels, which demand strict display clarity, color restoration and long-term stability.

For vehicle electronic accessories, it is commonly applied on dashboard auxiliary display, rear view secondary screen and vehicle information terminal. Thanks to wide temperature resistant and shock-proof material selection, it adapts to temperature difference and slight vibration during driving.

It is also widely adopted in smart home control panels, building video intercom indoor units and IoT handheld terminals. Meanwhile, it serves as standard display configuration for self-service terminals, POS peripherals and access control attendance devices in commercial scenarios.

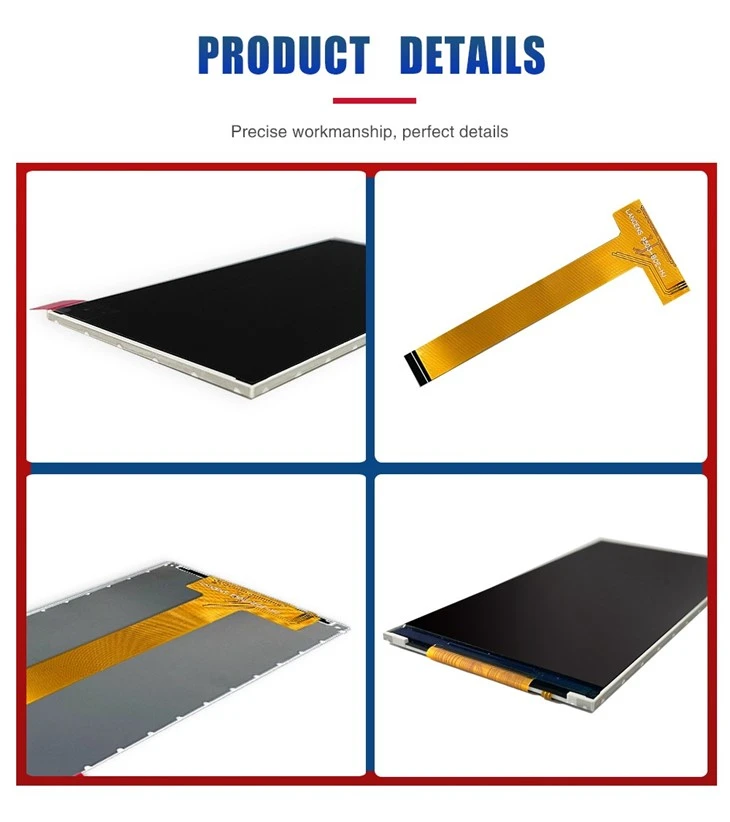

Product Details

In actual production workmanship, the front IPS glass presents high purity without bright spots, dark spots or pixel defects after strict factory inspection, with well-controlled overall color consistency.

Internal LED beads are arranged neatly with standardized 5S2P circuit wiring. It outputs steady 350cd/m² brightness with even light distribution, no screen flickering or partial over-bright area.

The FPC flexible cable at the interface end is well crafted with premium gold-plated pins, resisting oxidation and poor contact after repeated plugging, suitable for mass assembly and later maintenance.

The module features narrow bezel design with high screen-to-body ratio. The standard size 109×60×2.15mm matches common embedded mounting holes directly without extra mold modification.

Equipped with professional top sand 0° and bottom light 90° polarizer, it provides built-in anti-glare effect, effectively reducing ambient light reflection under indoor lighting and natural light beside windows, greatly improving readability.

Product Verification

As a professional original manufacturer focusing on small and medium-sized LCD modules, we have over ten years of industry experience. We own dust-free production workshop and complete production lines, completing glass cutting, laminating, backlight assembly and full module inspection in-house. The monthly output stably reaches over 100K, ensuring stable delivery for bulk orders.

All modules are certified with CE and RoHS, complying with environmental access standards for industrial and medical equipment. We implement strict three-level quality control: IQC incoming inspection, IPQC in-process inspection and OQC final outgoing inspection, strictly controlling product yield and quality from the source.

We have long served more than 500 global customers covering industrial automation, medical equipment, vehicle electronics and smart commercial hardware. Many regular customers regard this 4.45-inch IPS module as standard configuration for mass projects.

We offer standard 12-month warranty for all modules, providing free replacement for non-artificial quality defects. Our professional technical team offers timely support to solve driver debugging, structural matching and interface docking problems for project implementation.

Customizable Services

Different from trading companies only providing standard stock goods, we support deep personalized customization based on the 4.45 Inch TFT LCD Module to meet unique project requirements of different clients.

On display performance, we can adjust brightness from 250cd/m² to 1000cd/m², optimize contrast and color temperature calibration, and add anti-glare, anti-fingerprint surface treatment as well as tempered glass full lamination.

In structural aspect, we fine-tune outline size and active display area, customize FPC cable length and pin definition. We also integrate capacitive or resistive touch panel to form all-in-one display & touch module, saving secondary lamination development for clients.

For interface solution, we support MIPI converting to RGB, LVDS and other mainstream formats, and redefine pin sequence according to customer mainboard design, avoiding mainboard revision.

We upgrade environmental adaptability to ultra-wide temperature version from -30℃ to +85℃, and provide shock reinforcement and waterproof coating for special industrial and outdoor working conditions.

We also customize anti-static tray packaging and vacuum independent packaging. We support small-batch sample trial order and mass production with flexible lead time arrangement, perfectly matching customer R&D and mass production schedule.





 ● OEM&ODM             ● NO MOQ                ● SAMPLES IN STOCK              ● TESTING BOARD OPTIONAL

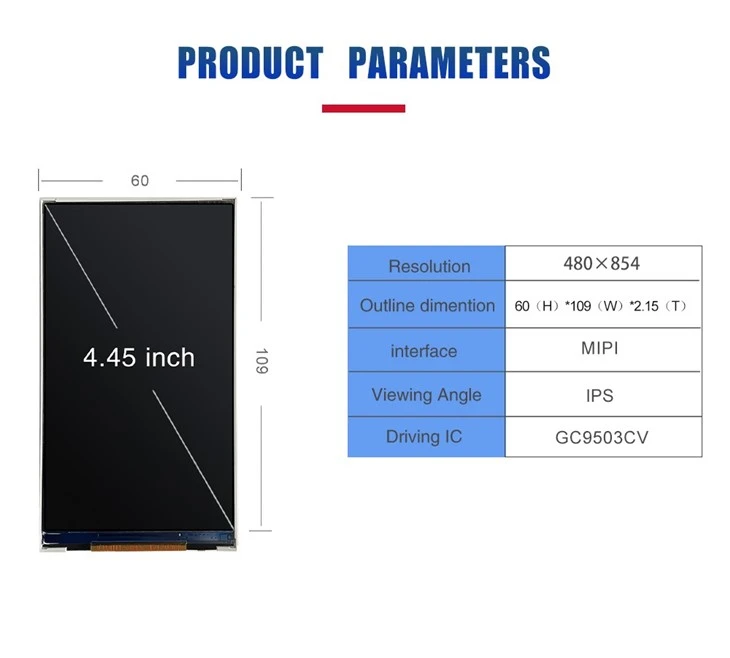

SPECIFICATIONS

ITEM	DIMENSION	UNIT
Size	4.45	inch
Outline Dimention	109x60x2.15	mm
Operating Temperature	-20°- +70°	°C
Storage Temperature	-30°- +80°	°C
Resolution	480x854
